GivEnergy GEN2 5kW Hybrid PV Battery Inverter charges from Economy 7 & Octopus Go

GivEnergy GEN2 5kW Hybrid PV Battery Inverter charges from the grid, IP65

#1: GIV-HY5.0-G2

 GivEnergy Data Sheet

 GivEnergy User Manual

 GivEnergy Warranty

 GivEnergy G99 Certificate

 To purchase 5 yr extended warranty please add warranty to your basket

?Suitable for charging from Economy 7 such as Octopus Go. For detailed explanation of how to maximise Economy 7 essential information to work out which battery storage options is best for you please visit - Understaning Economy 7

*Collections are not permitted due to health & safety regulations*

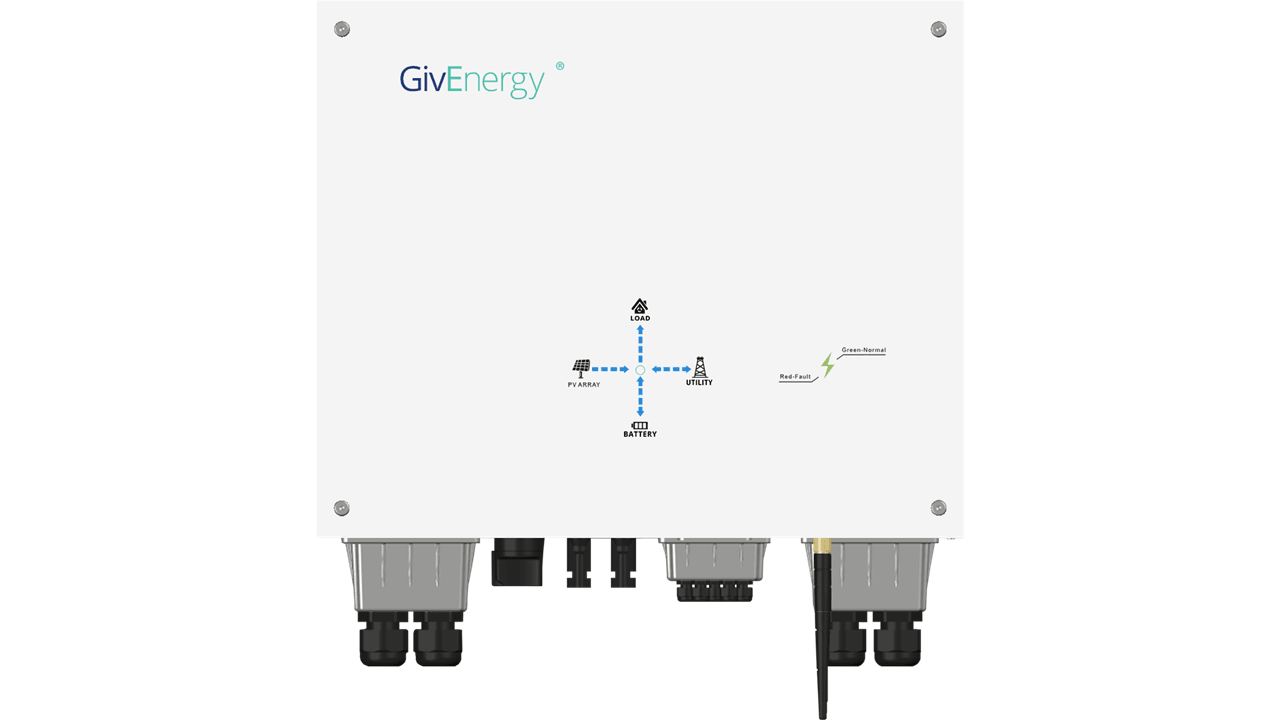

The second generation of the GivEnergy Hybrid Inverter is a battery inverter and solar inverter in one unit. It can be coupled directly with solar panels to generate usable electricity in the property, as well as storing any excess energy for later use in a battery. The Hybrid Inverter aims to minimise export by storing excess energy in the battery during generation hours. Additionally it will minimise import by discharging to meet demand in the property.

Product Features

• Uses GivEnergy Lithium batteries that can be added to extend KWh of battery bank
• Integrated WiFi - No Dongle required
• Batteries can be charged from Solar PV as well as your current utility supply
• Cloud based monitoring and control through WEB APP interface
• Inverter can be remotely updated Via Wi-Fi /4G dongle
• Inverter has up to 3600W backup power capability
• Available in 3.6KW and 5KW
• Inverter has 2 MPPT PV inputs that allow you to have solar panels in 2 different orientations
• Installations can be for new installs or retrofit to an existing system
• Backup function supported

Givenergy system must be connected to the internet to benefit from full warranty services

PLEASE NOTE: We are still awaiting additional documents from the manufacturer. These will be uploaded as soon as received.

Supplier Part No: GIV-HY5.0-G2
Weight: 27.5 kg
Rated Power: 5,000 W
Min PPT Voltage: 150 V
Max PPT Voltage: 600 V
DC Startup Voltage: 120 V
DC Shutdown Voltage: 100 V
Max Input Voltage: 600 V
Max DC Power: 6,500 W
Max AC Power (5 Minutes): 5,000 W
Surge AC Power (1 Second): 5,000 W
Max DC Current: 22 A
Max DC Inputs: 2
Has DC Fuses: 0
Connector: MC4
Included Connectors: 0
Euro Efficiency: 99.5 %
Transformer: None
MPPT Quantity: 2
Has Integrated DC Switch: No
