Product Details

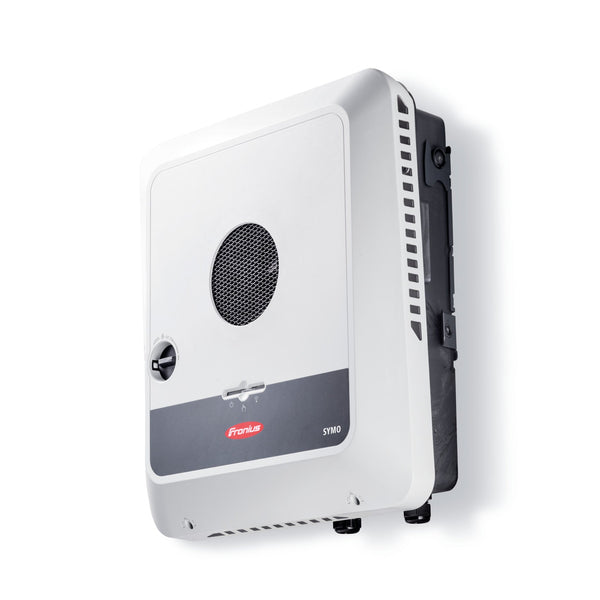

The Fronius Symo GEN24 Plus, with power categories of between 3 and 10 kW, is the ideal hybrid inverter for small industrial & commercial three-phase systems.
Whether itÿis used in photovoltaics, a storage system, grid back-up, heating or e-mobility, the Fronius Primo & Symo GEN24 Plusÿoffer a unique range of solutions for both single-phase or three-phase systems.
They can be combinedÿwith BYD Battery-Box Premium HVS/HVM storage systems to create a competitively priced storage solution forÿquality- and cost-conscious system owners.
- A Fronius Smart Meter and an internet connection are also required for operation.
The GEN 24 Plus boasts a light and compact design, an active cooling concept, and quick and easy installation and commissioning. The service concept, whereby individual parts can be replaced, also guarantees easy repair and therefore contributes to its sustainability credentials.
Features
PV Pointÿintegrated basic backup power function.
GEN24 units include a power socket that is automatically supplied with electricity in the event of a power outage.
- Automatic activation in case of a grid outage
- Costly additional installation work is not necessary
- Supplies households with single-phase loads of up to 3 kW
- Can operate even without battery (depending upon sunlight levels)
Full Backup Option
By using additional switchgear, power can be supplied to single or three-phase devices in a whole property in the event of a power outage.
- Supplies the entire household
- Automatic switch to backup power in the event of grid failure
Multi-Flow Technology
DC and AC energy flows can work in parallel even in grid backup mode. This allows energy from the PV array and from the battery to work together seamlessly with the battery being charged or discharged as appropriate.ÿ The battery can be charged from both the DC and the AC side meaning the inverter can also be AC-coupled to existing PV systems.
Active Cooling Technology
Using an innovative fan housing, which is integrated into a recess of a die-cast aluminium heat sink with specially arranged cooling fins.
- Long service life for the inverter
- Higher yields
- Flexibility in system design
Dynamic Peak Manager
- Uses MPP algorithm with tolerance of shadingÿ
- Maximum yields even in the case of partial shading
- Avoids the need for power optimisers
SuperFlex Design
- Uses 2 MPPT trackers with a wide DC input range
- Enables maximum flexibility in system design
- Potential problems with different roof orientations and partial shade avoided
Monitoring & Communication
- PV system monitoring using Fronius Solar.web allowing system data and potential for optimisation potential visible at all times
- Energy Management usingÿ4 digital I/Os to increase self-consumption
- Open interfaces allowing easy integration of third-party components such as heat pumps or Smart Home systems. These include Modbus RTU/TCP SunSpec, Fronius Solar API, LAN, WLAN
Configuration notes:
- Only one GEN24 inverter inÿa system can haveÿa battery connected
- Export limitation is only possible with one GEN24 in a system (firmware update expected to resolve this)
