# 1 X1-AC-3.6  Storage Systems - AC Battery Charger

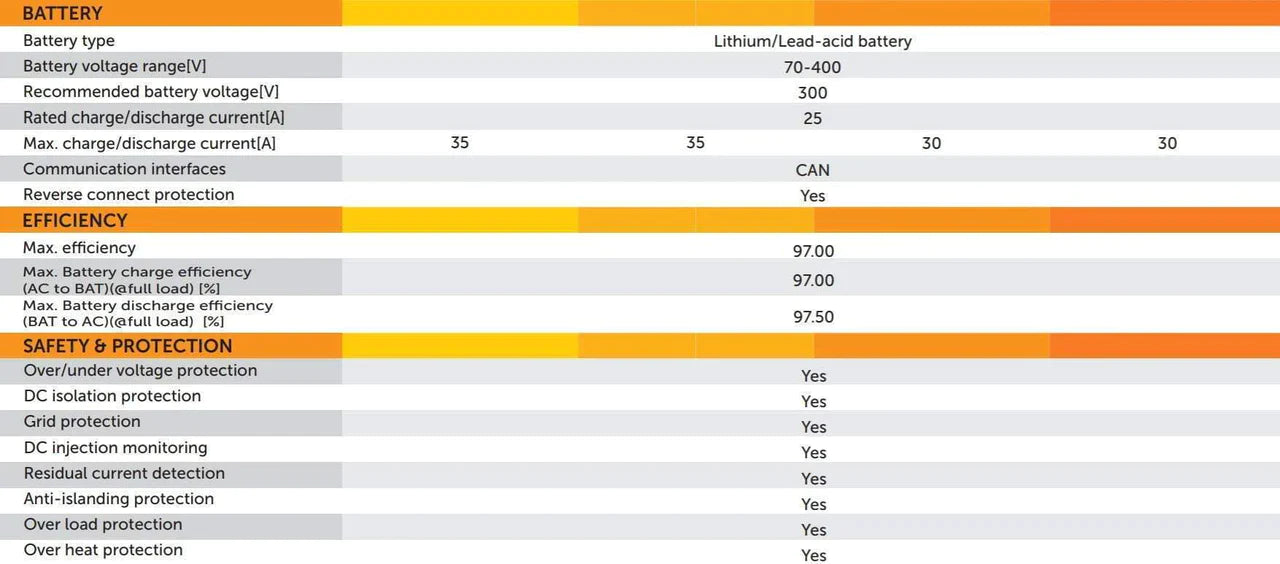

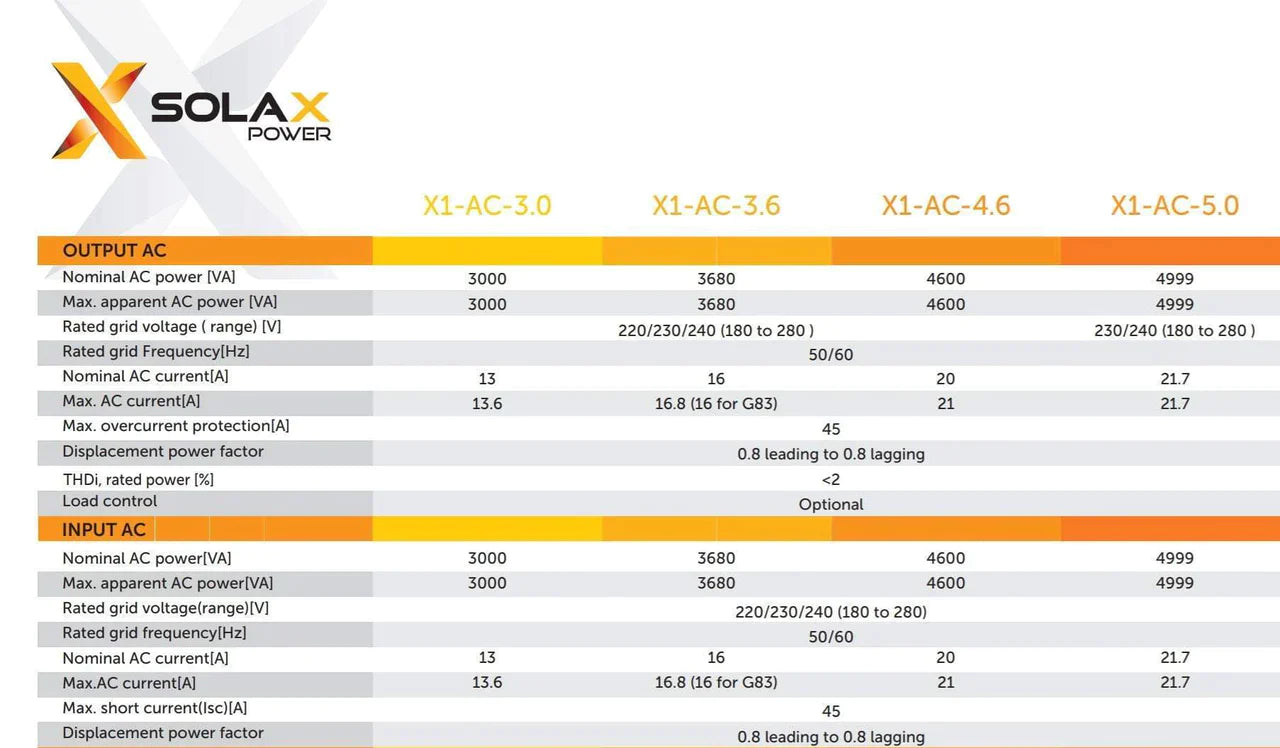

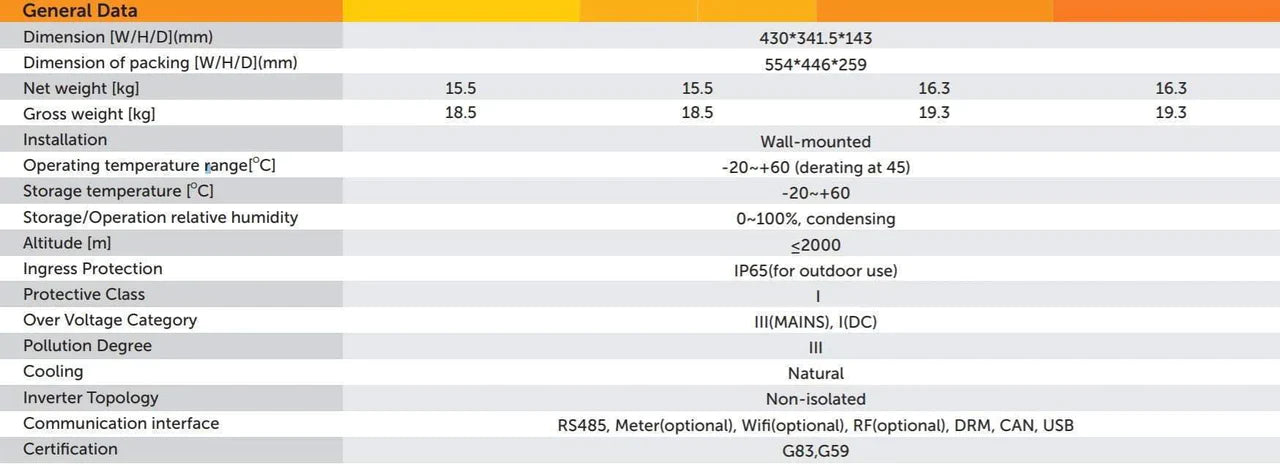

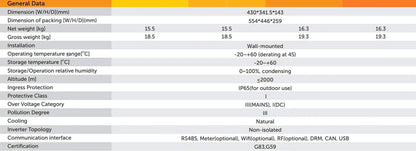

 SolaX1 AC Data Sheet

 SolaX1 AC User Manual

 SolaX AC Warranty

 SolaX AC G99 Certification

Modbus Energy meter is required for SolaX charger to work

WiFi stick is required for SolaX Cloud

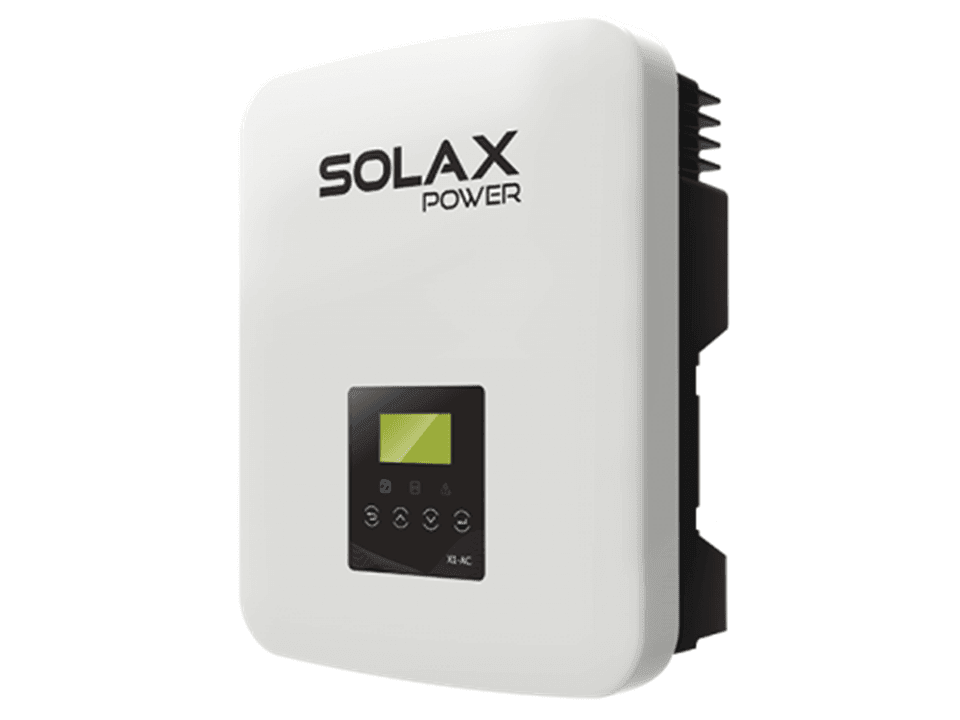

X1 AC Charger

Upgrade a PV system with the X1 AC Coupled Inverter Charger from SolaX. Compatible with any brand (single phase) inverter, the X1 retro-fit has a maximum efficiency of up to 97%, is rated for indoor or outdoor use and can be remotely monitored via the XCloud.

Additional features:

High voltage battery support means thinner cables are required
7.5kW Max charge/discharge
Wifi or LAN stick available separately
Suitable for grid trading applications with less than 0.5s response time
Charging from grid possible
Natural Cooling, quiet and low maintenance
Please note the minimum number of batteries per X1 AC inverter is 1 and maximum of 3. Please note batteries need to be the same capacity, its not possible to connect both 4.5kWh and 6.3kWh to one inverter.

UK only: This inverter has been tested and certified according to G98 or G99, but only for units having most recent Firmware and Hardware version. All Segen stock meets that criteria.
