Product Details

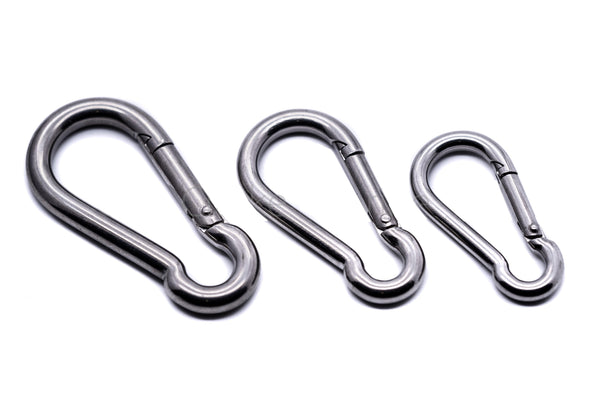

Stainless steel 316 A4 carabiner spring snap hook also known as karabiner or karabina hooks

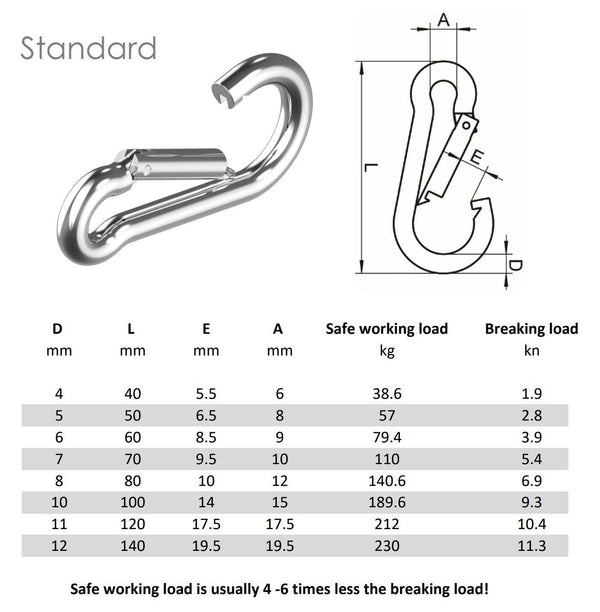

4mm x 40mm specifications
A : Hook thickness - 4mm
B : Overall hook length - 40mm
Inner diameter where rope would sit - 6mm
Opening gap - 5.5mm
Breaking load - 1.9kn
Safe working load - 38.6kg
Marine grade stainless steel (A4 316)
5mm x 50mm specifications
A : Hook thickness - 5mm
B : Overall hook length - 50mm
Inner diameter where rope would sit - 8mm
Opening gap - 6.5mm
Breaking load - 2.8kn
Safe working load - 57kg
Marine grade stainless steel (A4 316)
6mm x 60mm specifications
A : Hook thickness - 6mm
B : Overall hook length - 60mm
Inner diameter where rope would sit - 9mm
Opening gap - 8.5mm
Breaking load - 3.9kn
Safe working load - 79.4kg
Marine grade stainless steel (A4 316)
7mm x 70mm specifications
A : Hook thickness - 7mm
B : Overall hook length - 70mm
Inner diameter where rope would sit - 10mm
Opening gap - 9.5mm
Breaking load - 5.4kn
Safe working load - 110kg
Marine grade stainless steel (A4 316)
8mm x 80mm specifications
A : Hook thickness - 8mm
B : Overall hook length - 80mm
Inner diameter where rope would sit - 12mm
Opening gap - 10mm
Breaking load - 6.9kn
Safe working load - 140.6kg
Marine grade stainless steel (A4 316)
10mm x 100mm specifications
A : Hook thickness - 10mm
B : Overall hook length - 100mm
Inner diameter where rope would sit - 15mm
Opening gap - 14mm
Breaking load - 9.3kn
Safe working load - 189.6kg
Marine grade stainless steel (A4 316)
11mm x 120mm specifications
A : Hook thickness - 11mm
B : Overall hook length - 120mm
Inner diameter where rope would sit - 17.5mm
Opening gap - 17.5mm
Breaking load - 10.4kn
Safe working load - 212kg
Marine grade stainless steel (A4 316)
12mm x 140mm specifications
A : Hook thickness - 12mm
B : Overall hook length - 140mm
Inner diameter where rope would sit - 19.5mm
Opening gap - 19.5mm
Breaking load - 11.3kn
Safe working load - 230kg
Marine grade stainless steel (A4 316)
