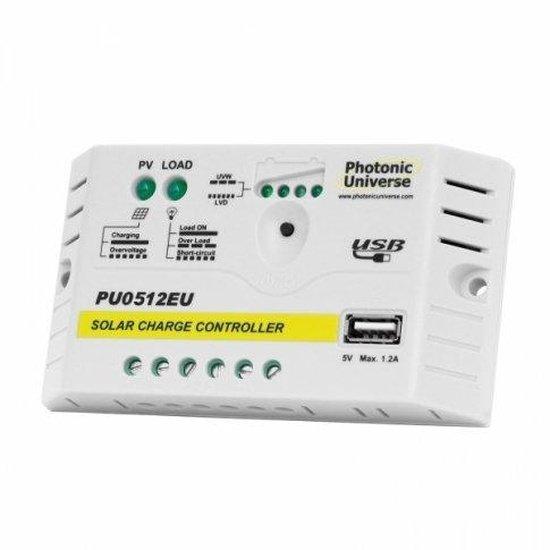

5A solar charge controller / regulator for 12V batteries and solar panels up to 60W

This solar charge controller is designed to protect and charge a 12V battery simultaneously. It features safety protection functions such as protection against reverse current at night, overcharge/discharge, overvoltage, overload, and short circuit. The Pulse Width Modulation (PWM) technology used in this controller increases charge acceptance and extends the life of the battery, as well as recovers some lost battery capacity.

Key features of the 5A 12V solar charge controller include a 5V USB port (1.2A output) for fast charging of USB compatible devices, a pair of load terminals for connecting 12V loads, bright LED indicators to show the battery state of charge, solar panel status, and load status, as well as an "on/off" button for the load.

This controller is compatible with solar panels up to 60W. It is recommended to use solar panels with a maximum power voltage of 17-20V for optimal efficiency. For solar panels with a voltage higher than 25V, we recommend using one of our MPPT solar charge controllers for maximum efficiency.

The controller is compatible with sealed, gel, and flooded batteries, and the battery type can be selected by the user. Its specifications include a charging current of 5A, load current of 5A, rated voltage of 12V, and various indicators for battery state of charge, solar panel, and load status. The product comes with a 1-year warranty and an instruction manual for installation guidance. If you need assistance with installation or have any technical questions, feel free to contact us by email or phone for free support.
