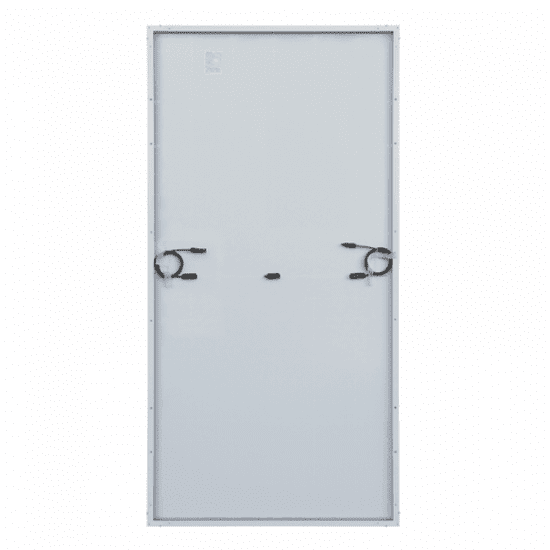

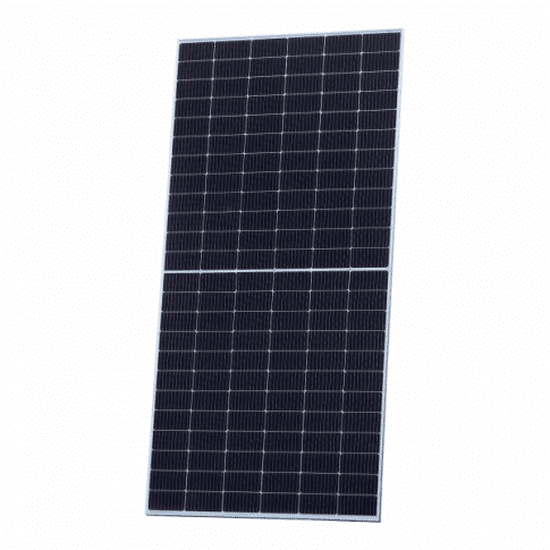

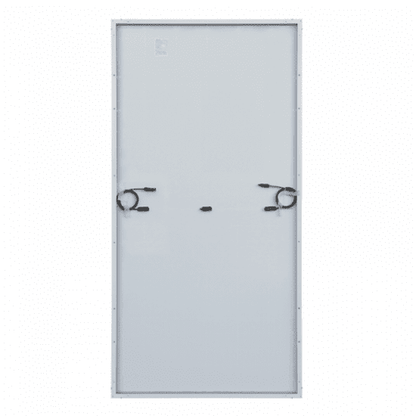

540W SHARP NU-JD MONOCRYSTALLINE SOLAR PANEL WITH HIGH-EFFICIENCY PERC CELLS

Regular price £499.99 Sale

per
Tax included. Shipping calculated at checkout.

Availability: Available Unavailable

Product SKU: SRP-540M

  • Exchange or Return within 30 days of a delivery
  • 100% quality Guaranteed Plus Fast & Secure Shipping

  • Stock levels may vary and change frequently. If a product appears to be in stock, it may have already sold out. For any questions regarding availability, please contact us. We appreciate your understanding.
  • Product Details

    Remember the following information about the 540W Sharp NU-JD monocrystalline solar panel with high-efficiency PERC cells:


    This high-quality 540W solar panel is from the leading solar panel manufacturer, Sharp, which has over 60 years of experience with solar technology and more than 50 million solar panels installed worldwide. This MCS certified panel is suitable for various applications, including grid-tie household systems and off-grid installations where mains power is limited or unavailable, such as boats, caravans, campervans, cabins, or glamping huts. These high-power panels are ideal for large systems where minimizing the time and expense of fitting a high wattage array is important.


    The high-efficiency solar cells use PERC technology with 10 busbars to extract more power from a smaller surface area, increasing the panel's output without increasing its size. The half-cut cell construction decreases internal losses, reduces the risk of hotspots, and improves performance in shaded conditions. The panel is robust, with an IP68 waterproof rating, and has been tested for resistance against PID, salt mist, ammonia, heavy snow, dust, and sand, ensuring a long service life even in harsh marine or wilderness conditions. The panel comes with a pair of male/female MC4 connectors crimped on the end of the cable for easy waterproof connection to other solar panels, extension leads, or your existing system. It also includes a 15-year workmanship guarantee and 25-year output guarantee.


    Specifications:

    - Peak power: 540W

    - Maximum power voltage: 41.64V

    - Maximum power current: 12.97A

    - Open circuit voltage: 50.34V

    - Short circuit current: 13.66A

    - Power tolerance: 0/+5%

    - Dimensions: 2279 x 1134 x 35 mm

    - Weight: 27.8 kg

    - Mounting holes for ease of installation

    - 2x 1.75m of high-quality single-core solar cable

    - Male and female MC4 waterproof connectors


    The product is covered by a 15-year workmanship warranty provided by Sharp Electronics. In addition, solar cells are guaranteed to produce at least 97.5% of nominal power in the first year after purchase and less than 0.7% degradation of nominal power each year after until 25 years after purchase, for a minimum of 80.7%.


    Please note: If the application of this solar panel is to charge batteries, it is essential that this solar panel is used with a suitable solar charge controller. Recommended types of solar charge controllers include:

    - For 12V batteries, a high-efficiency MPPT solar charge controller rated at 30A or higher

    - For 24V batteries, a high-efficiency MPPT/standard PWM solar charge controller rated at 20A or higher


    If you need help with installation or have any technical questions, we can provide free support - please contact us by email or phone. The following documents are available for download:

    - Brochure for Sharp Energy Solutions

    - MCS Certificate of Compliance

    - Datasheet for Sharp NU-JD 540W monocrystalline solar panel (SRP-540M)

    - Guarantee for Sharp NU-JD 540W monocrystalline solar panel (SRP-540M)

    - Installation Guide for Sharp NU-JD 540W monocrystalline solar panel (SRP-540M)
