Product Details

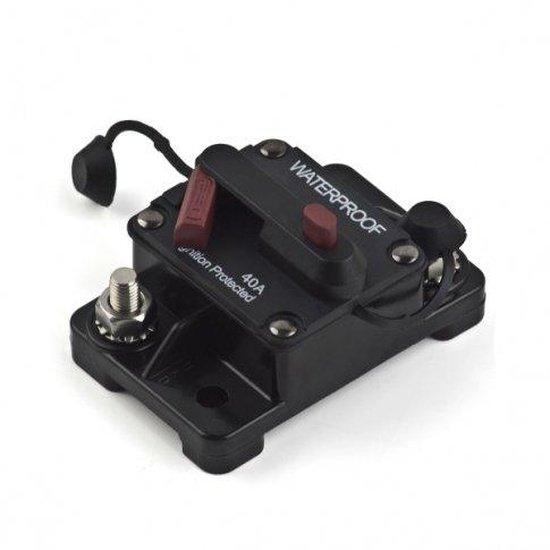

The circuit breaker combines the functions of a resettable 40A fuse and an On/Off switch in one unit. It is ideal for any DC system that requires both over-current protection and manual isolation of the circuit. The breaker is suitable for a wide range of DC system voltages from 12V to 48V. Like any fuse, this circuit breaker is designed to protect the system from over-current resulting from high power draw, short-circuits, wiring mistakes, equipment faults or any other high current event.
The circuit breaker is resettable, making it a superior alternative to fuses that require replacement when blown. Additionally, the breaker has a manual-break option which allows it to be used as an isolator On/Off switch for simple disconnection and reconnection of the system. The circuit breaker is made from strong thermal plastic engineered to withstand high temperatures (UL94V-0 rated). It is also water resistant (IP67 rated) and ignition protected (meets international standards S.A.E. J1625, J1171, UL1500).
This product is suitable for a wide range of DC applications including:
- Connecting solar or wind charge controllers to batteries
- Between off-grid inverter DC input and batteries
- DC power distribution or charging circuits
- Other DC automotive and marine applications
Circuit breaker specifications:
- Rating: 40A
- Type: Thermal overcurrent protection device
- Material: Thermal plastic (UL rated 94V-0)
- Operating temperature: -32°C to 82°C
- Storage temperature: -34°C to 149°C
- Terminals size: M6
- Enclosure: IP67
- Size: 74 x 48 x 37 mm
- Weight: 110g
- Waterproof rating: IP67
- International standard ratings (S.A.E. J1625, J1171, UL1500)
Please note that this circuit breaker is intended for surface mounting.
