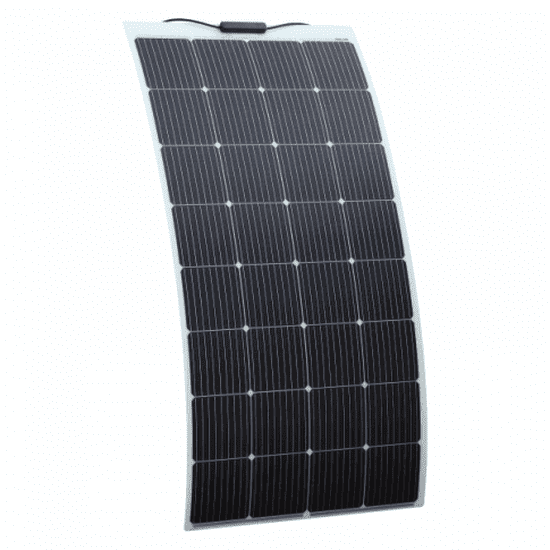

200W SEMI-FLEXIBLE FIBREGLASS SOLAR PANEL WITH DURABLE ETFE COATING

Please remember the following information about the 200W semi-flexible fiberglass solar panel with durable ETFE coating:

This solar panel is highly durable and is reinforced with fiberglass plastic and a strong ETFE surface. It is made from monocrystalline solar cells.

The high-efficiency 150W solar panel is perfect for permanent outdoor use, providing free electricity for charging 12V batteries to power various applications such as in a motorhome, caravan, camper, boat, solar lighting systems, off-grid, and back-up solar power systems. The panel can also be used to provide a direct power supply for applications not sensitive to changes in input voltage/current (e.g. electric motors or pumps) and for various grid-tie applications.

Features:

- Robust construction using plastic reinforced with fiberglass creates a sturdy and durable solar panel.

- Special textured surface significantly reduces light reflection and improves performance in low light and cloudy conditions.

- Highly flexible design makes this panel ideal for curved roofs and surfaces where bonding is preferable. It can also be fixed by bolts or screws.

- The panel is incredibly light (only 3.65kg) and very thin (just 2mm), making it great for all vehicles.

- High resistance to saltwater environments makes it perfect for boats and marine applications.

- Sealed waterproof design ensures it can be used in all weather conditions.

Strong ETFE coating:

In addition to the fiberglass reinforcement, the surface of this 150W semi-flexible solar panel is made of strong ETFE material, which has a longer service life compared to standard semi-flexible solar panels. These particular semi-flexible solar panels are extremely hard-wearing and less prone to cracking, delamination, and corrosion. The lightly textured coating of this panel creates an anti-reflective surface, allowing the panel to absorb a far greater amount of light, thereby increasing efficiency. ETFE material has long been used in applications where durability and high-temperature resistance are required.

High quality 9-busbar solar cells:

This panel also features new generation 9-busbar solar cells, which are more efficient than the 2, 3, 4, or 5 busbar solar cells used in most other solar panels. They are able to extract more power from the same surface area.

- Smaller overall size, ideal for limited space applications.

- Textured surface reduces light reflection and maximizes light absorption from all angles.

- Panel is equipped with 2 x 1m cables designed for solar panels, with waterproof MC4 connectors for easy connectivity.

- Solar panel specifications:

  - Peak power: 200W

  - Maximum power voltage: 17.6V

  - Maximum power current: 11.36A

  - Open circuit voltage: 20.8V

  - Short circuit current: 12.05A

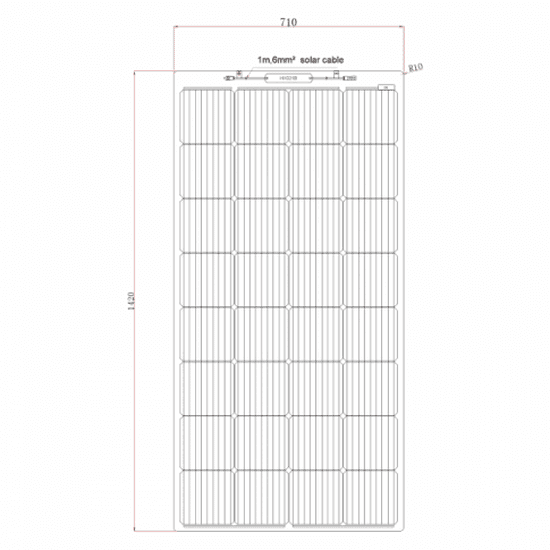

  - Dimensions: 1420 x 710 x 2 mm

  - Weight: 3.65 kg

- Comes with a 1 year workmanship warranty covering material and production defects.

- Detailed instruction manual included for wiring and operations.

- Requires a solar charge controller to charge a 12V battery.

If you need assistance with installation or have technical questions, feel free to contact us by email or phone. You can download the handling and installation manual for the solar panel from the Documents tab.
