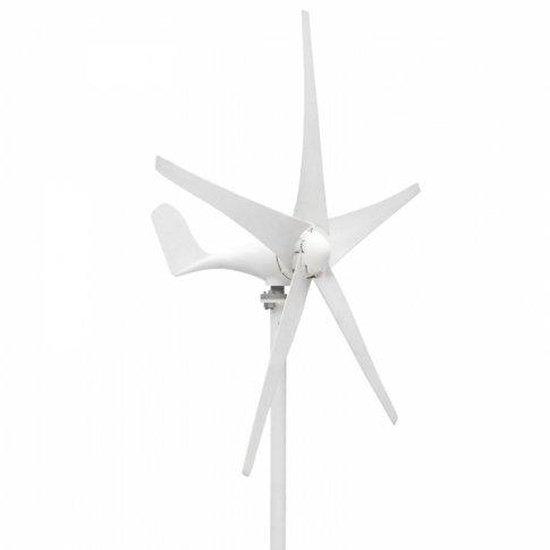

200W 12V wind turbine with 5 blades

Regular price £179.99 Sale

per
Tax included. Shipping calculated at checkout.

Availability: Available Unavailable

Product SKU: WTJ200-12

  • For all products over £50 you will get an extra 10% off, right in the check-out page!!
  • Exchange or Return within 30 days of a delivery
  • 100% quality Guaranteed Plus Fast & Secure Shipping

  • Stock levels may vary and change frequently. If a product appears to be in stock, it may have already sold out. For any questions regarding availability, please contact us. We appreciate your understanding.
  • Product Details

    The 200W 12V wind turbine with 5 blades is designed to provide a reliable source of electricity for various off-grid applications. It works well in different locations with varying wind speeds, including high wind areas such as open fields, coastal areas, and high ground, as well as in low wind areas when mounted on a suitable pole. It can be used for stationary applications (remote, off-grid, backup) and mobile use (e.g. boats). This turbine is also a great addition to a solar charging kit to supplement energy production, especially useful for charging at night or in regions with reduced winter sunlight.


    Key features of this 200W 5-blade wind turbine include:

    - Robust design: The turbine casing is made of strong cast aluminum alloy for durability in harsh conditions and rapid response to wind.

    - 5-blade construction: Maximizes output in poor wind conditions and reduces the minimum required wind speed for start-up to only 2 m/s.

    - Aerodynamic optimization: The blades are designed for maximum efficiency and protection from strong winds.

    - Automatic wind detection: The tail vane automatically seeks the best wind direction and re-orients the turbine accordingly.

    - Patented permanent magnet AC generator: Features a special stator for effortless operation with minimal blade resistance.

    - Adjustable tube connector: Suitable for a wide range of mounting poles, including those typically used for scaffolding.

    - Easy installation: Assembly of the turbine is straightforward and requires minimal effort.


    Additional considerations:

    - The maximum output of this wind turbine is not strictly limited to a specific power rating. While it is rated to produce 200W at a wind speed of 10 meters per second, in strong winds it has the potential to exceed this rating.

    - This wind turbine produces three-phase AC output and requires a triple wire connection to a suitable charge controller.

    - A suitable mounting pole is required (not included). Pole recommendations can be found in the installation tab.

    - Refer to the Details and Specifications tab for more information about this product.


    Specifications:

    - Number of blades: 5

    - Rated power: 200W

    - Maximum power: 230W

    - Rated voltage: 12V

    - Start-up wind speed: 2 m/s

    - Rated wind speed: 10 m/s

    - Survival wind speed: 45 m/s

    - Blade material: Nylon fiber

    - Generator type: Three-phase permanent magnet AC synchronous generator

    - Magnet material: Neodymium Iron Boron

    - Generator case: Cast aluminum alloy

    - Control system: Electromagnet / Wind wheel yaw

    - Tube connector diameter: 54mm (adjustable)

    - Cable: 3 single core cables with bare ends. Length: approx. 10cm / Cross section: 1.5mm2

    - Working temperature: -40°C to +80C

    - Net weight: 7.5 kg

    - Diameter of blades: 1.25m

    - Compliance: CE, ISO14001, ISO 9001, TUV

    - Screws included

    - This product is covered by a 1-year manufacturer warranty.


    Installation and assembly of this wind turbine is simple. Please refer to the detailed user manual supplied with this product. Note that the picture above and component list in the user manual may not be entirely accurate and show a different connector type to the tube connector supplied. Also, this wind turbine requires connection to a suitable charge controller in order to charge a battery. Additionally, a mounting pole is required, which is not included. The base of this wind turbine features an adjustable tube connector (diameter 54mm) which can be expanded to accommodate a wider pole or secured around a narrower pole using bolts and additional holes. It is recommended to use a metal pole for mounting (e.g. a scaffolding pole) rather than poles made of timber or plastic, which may pose a safety hazard.
