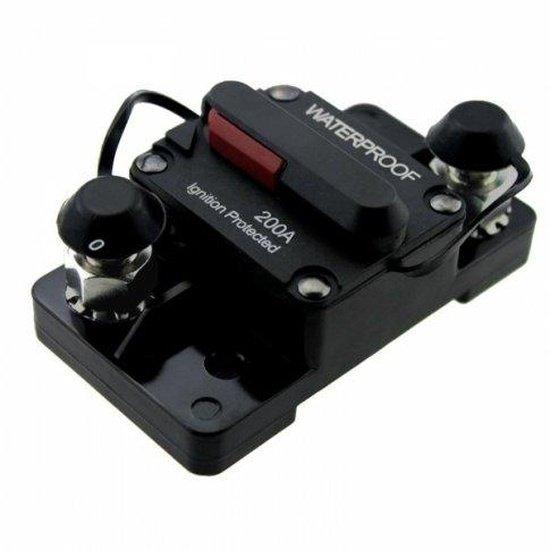

    200A 12V/24V/48V Automatic over-current DC circuit breaker

    This 200A circuit breaker combines functions of a resettable 200A fuse. It is ideal for any DC system that requires over-current protection. The breaker is suitable for a wide range of DC system voltages from 12V to 48V.

    Like any fuse, this circuit breaker is designed to protect the system from over-current as a result of high power draw, short-circuits, wiring mistakes, equipment faults or any other high current event. The circuit breaker is resettable which makes it a superior alternative to fuses which require replacement when blown.

    The circuit breaker is made from strong thermal plastic engineered to withstand high temperatures (UL94V-0 rated). The breaker is also water resistant (IP67 rated) and ignition protected (meets international standards S.A.E. J1625, J1171, UL1500).

    This product is suitable for a wide range of DC applications including:

    • Connecting solar or wind charge controllers to batteries;
    • Between off-grid inverter DC input and batteries;
    • DC power distribution or charging circuits;
    • Other DC automotive and marine applications.

    Click on the Details and Specifications tab for more information.

    Circuit breaker specifications:

    • Rating: 200A
    • Type: Thermal overcurrent protection device
    • Material: Thermal plastic (UL rated 94V-0)
    • Operating temperature: -32C to 82C
    • Storage temperature: -34C to 149C
    • Terminals size: M10
    • Enclosure: IP67
    • Size : 86 x 48 x 37 mm
    • Weight :  138g
    • Waterproof rating: IP67
    • International standard ratings (S.A.E. J1625, J1171, UL1500)

    Please note that this circuit breaker is intended for surface mounting.

    The following documents are available to download:

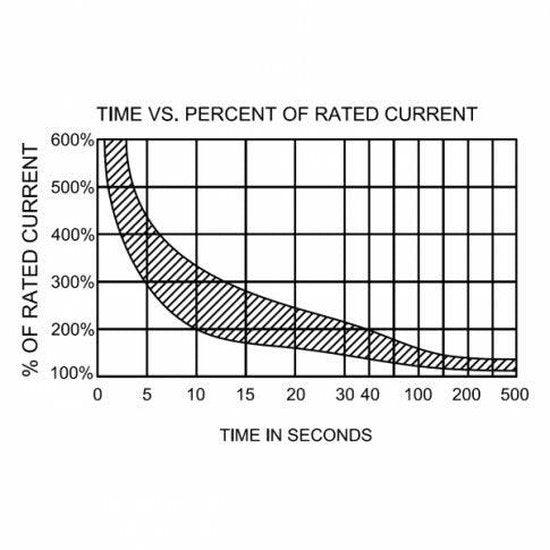

    Time vs Rated Current graph for Photonic Universe 200A Circuit breaker (CB200)

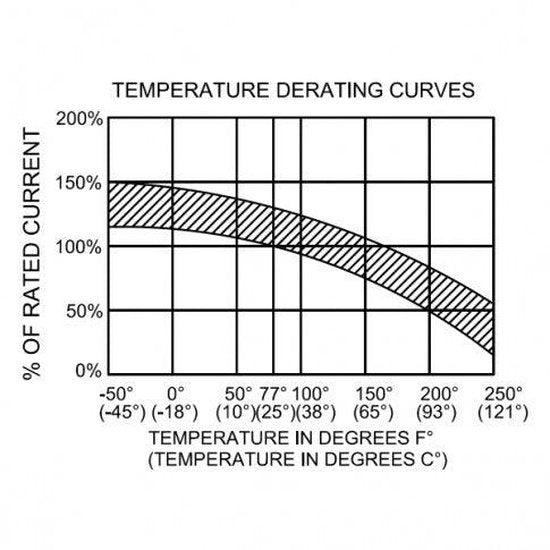

    Temperature derating graph for Photonic Universe 200A Circuit breaker (CB200)
