Product Details

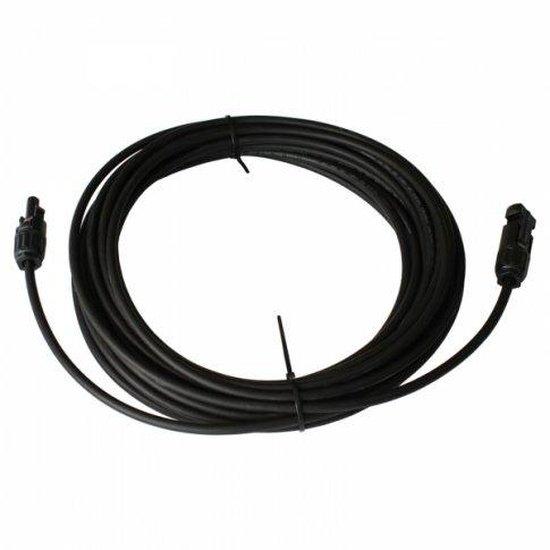

10-meter single-core extension cable (4.0mm) with MC4 connectors. This single-core solar extension cable with a 4.0mm cross-section has been specially designed for solar panels to carry high current with minimal power loss. It comes with waterproof MC4 connectors — "male" on one end and "female" on the other — which can easily connect to similar MC4-type connectors that come with most solar panels, including Photonic Universe solar panels.
This cable is suitable for all weather conditions, including cold and hot temperatures. The 4.0mm cross-section is typically sufficient for off-grid 12V solar panels and systems up to 160W, or on-grid panels (typical voltage 30-60V) with a higher power rating. The cable can be cut in half if required to make two 5m tails.
Cable specifications:
- Conductor: tinned copper
- Cross-section: 4.0mm
- Conductor resistance: 5.09 Ohm/km (20°C)
- Insulation and Jacket: 120°C XLPE
- Working temperature range: -40°C to +120C
- Certification: TUV
- Outer diameter: 6.1mm
Installation:
If you have any questions about this item or need free advice, please contact us via email or phone.
