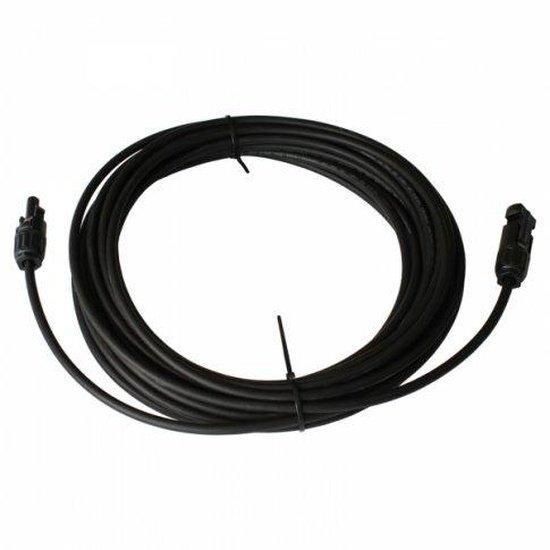

10m single core extension cable (2.5mm) with MC4 connectors

This is a 10m single-core extension cable with a 2.5mm cross section and MC4 connectors. It is specifically designed for solar panels to efficiently carry high current with minimal power loss.

The cable comes with waterproof MC4 connectors, with a "male" connector on one end and a "female" connector on the other. These connectors can be easily attached to similar MC4-type connectors found on most solar panels, including Photonic Universe solar panels. The cable is suitable for use in all weather conditions, including cold and hot temperatures.

The 2.5mm cross-section cable is suitable for off-grid 12V solar panels and systems up to 100W, or for on-grid panels (typical voltage 30-60V) with higher power ratings. If necessary, the cable can be cut in half to create two 5m tails.

Here are the cable specifications:

- Conductor: tinned copper

- Cross section: 2.5mm

- Conductor resistance: 8.21 Ohm/km (20C)

- Insulation and Jacket: 120C XLPE

- Working temperature range: -40C to +120C

- Certification: TUV

- Outer diameter: 5.5mm

Installation:

If you have any questions about this item or need free advice, please contact us via email or phone.
