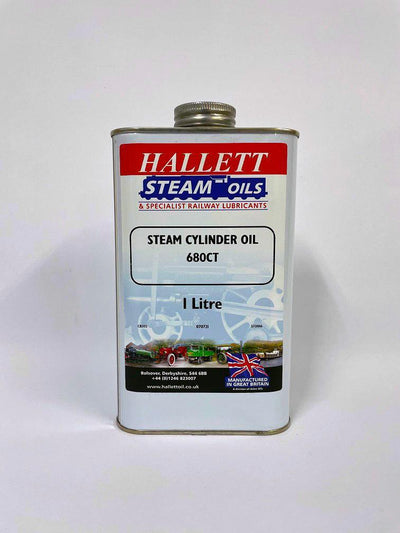

Compounded Steam

Cylinder Oil 680CT

Hallett Code: STO016

A compounded steam cylinder oil formulated from a blend of solvent refined mineral oil and unique additive technology to offer improved corrosion resistance and lubricity to protect components from premature wear.

The fatty compounding enables the oil to form an emulsification in the presence of moisture whilst retaining a consistent and strong lubrication film, this allows the lubricant to disperse where it can adhere to the internal surfaces of steam cylinders and valve blocks.

Product Benefits:
•   Does not damage paintwork or cause staining on phosphor bronze, brass or copper fittings.
•   Promotes low carbonisation of cylinders and pistons.
•   Provides a robust lubricating film to protect valves and cylinders.
•   Offers excellent corrosion resistance.
•   Exceptional lubricity, even at elevated temperatures.

Steam temperature – up to 290°C (550°F)
Boiler pressure – up to 250PSI

Applications:

Designed for moderate-high steam temperatures, pressures, saturated and light superheat steam conditions. For use with steam locomotives operating on preserved lines, traction engines, steam rollers and stationary engines.
This product may be used for the lubrication of industrial gears and bearings where the use of an extreme pressure oil is not required.
Compounded lubricants are not recommended for use where there is condensate recovery.

Product Test Data:

Density @15?C: 0.920

Kinematic Viscosity @ 40?C (cSt) : 680.0
Kinematic Viscosity @ 100?C (cSt) : 38

Viscosity Index : 92
Flash Point (COC ?C) : >200

Compounded Steam Cylinder Oil 680CT - Hallett Steam Oils - STO016
