This powerful inverter features an industry-leading maximum efficiency of 97.4%, delivering up to 25kW of reliable power.

#1: X3-PRO-25K

High-Efficiency

Maximum efficiency is up to 98.5%
Low start up voltage, ultrawide MPPT voltage range
150% oversizing, 110% overloading output
Built-in shadow tracking function

Safe

SPD type II protection both AC&DC
ARC protection (Optional)
IP66 protection

Smart

Built-in export power control
Intelligent load management - heat pump (Optional)
24 hours operation monitoring
Multiple monitoring methods, Pocket WiFi/LAN/4G (Optional)

Economic

Ultra-high power density
Maximum 16A DC input current, support high power solar panel
Up to 3 MPPTs, 2 strings per MPPT

Weight: 28 kg
Rated Power: 25,000 W
Min PPT Voltage: 200 V
Max PPT Voltage: 960 V
DC Startup Voltage: 200 V
DC Shutdown Voltage: 180 V
Max Input Voltage: 1,000 V
Max DC Power: 37,500 W
Max AC Power (5 Minutes): 25,000 W
Surge AC Power (1 Second): 27,500 W
Max DC Current: 32 A
Max DC Inputs: 0
Has DC Fuses: 0
Connector: MC4
Included Connectors: 6
Euro Efficiency: 98 %
Transformer: None
MPPT Quantity : 6
Has Integrated DC Switch: No
Warranty: 10 years

High-Effi­ciency

Safe

Smart

Economic

High-Efficiency

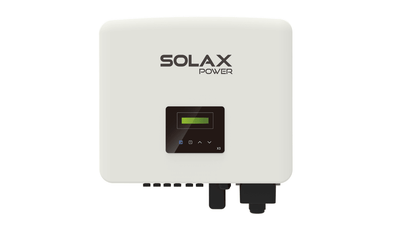

SolaX X3 Pro 3 Phase Inverter 25kW G2
