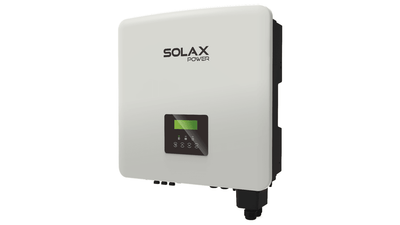

SolaX X3 G4-V2 Hybrid 3 Phase Inverter HV 8.0kW This high-performance inverter offers up to 95% efficiency and full power conversion, ensuring reliable energy for all your needs.

#1: X3-HYBRID-G4-8.0-V2

SolaX X3 Data Sheet

SolaX X3 Manual

SolaX X3 Warranty

SolaX X3 G99 Certificate

Superseding the extremely successful X-Hybrid generation 3, the newest X-Hybrid generation 4 has been designed and developed using the very latest solar technology. SolaX has pushed back the boundaries for what is possible when designing a storage inverter.

High-Efficiency

150% PV oversized and 110% overload output. Maximum 150% overload output
Higher efficiency on charging and discharging, up to 97.5%
Built-in shadow tracking function

Economic

Maximum 16A DC input current, support for high power solar panels
Low start output voltage
Less energy loss from battery to inverter

Intelligent

Switchover time <10ms
Quick configuration with U-disk
Lithium & Lead-acid battery compatible
CT compatible, loads respond within 0.3s
Intelligent loads management(e.g., Heat pump)
On & Off-grid parallel function, up to 150kW
5 work modes, 2 charging periods available
VPP ready, ancillary service in power market
Three-phase unbalanced output 50% nominal output power on single phase at most

Wi-Fi is now included with Solax X3-Hybrid-G4 V2 product so no need to purchase additional Wi-Fi equipment.

Weight: 30 kg
Rated Power: 8,000 W
Min PPT Voltage: 180 V
Max PPT Voltage: 950 V
DC Startup Voltage: 200 V
DC Shutdown Voltage: 200 V
Max Input Voltage: 950 V
Max DC Power: 12,000 W
Max AC Power (5 Minutes): 8,001 W
Surge AC Power (1 Second):8,002 W
Max DC Current: 26 A
Max DC Inputs: 2
Has DC Fuses: 0
Connector: SUNCLIX
Included Connectors: 2
Euro Efficiency: 97 %
Transformer: None

MPPT Quantity: 2
Has Integrated DC Switch: No
Warranty: 5 years
