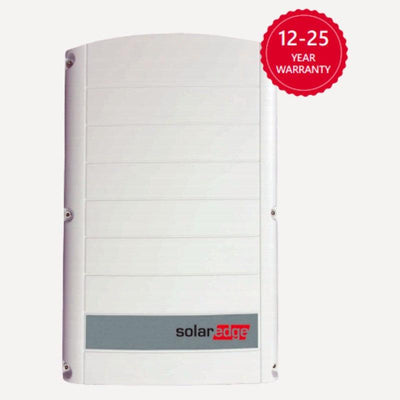

SolarEdge 33,300W Three Phase Inverter -With DC Safety Unit, Including DC Safety Switch and Surge protection (type II), Fuses and Automatic Rapid Shutdown upon AC grid disconnect

The SolarEdge three phase inverter combines sophisticated digital control technology with efficient power conversion architecture to achieve superior solar power harvesting and best-in-class reliability.

The fixed-voltage technology ensures the solar inverter is always working at its optimal input voltage, regardless of the number of modules in a string or environmental conditions.

A proprietary data monitoring receiver has been integrated into the inverter and aggregates the power optimizer performance data from each PV module. This data can be transmitted to the web and accessed via the SolarEdge monitoring platform for performance analysis, fault detection and troubleshooting of PV systems.

Options (select appropriate choice from drop down menu):

R4: SE33K-RW00IBNR4 - With DC Safety Unit, Including DC Safety Switch and Surge Protection (type II)

Z4: SE33K-RWR0IBNZ4 - With DC Safety Unit, Including DC Safety Switch and Surge protection (type II), Fuses and Automatic Rapid Shutdown upon AC grid disconnect

AC attributes

Max power: 33300W

Max current (per phase): 48.25A

Number of phases: 3

DC attributes

Number of MPPT Not applicable

V range of MPPT Not applicable

Max power 49950W

Max current 48.25A

Max voltage 1000V

Start up voltage Not applicable

System

Efficiency 98.3%

IP rating IP65

Built in protection Arc fault, DC surge type II

Export limitations Possible using meter

Weight 32kg

Dimensions 836x317x300mm

Communication Ethernet, RS485, (Wifi, cellular optional)

Warranty (extensions) 12 years (20 or 25 years extensions available)

Key features

Low noise - no external fan

Lightweight

Oversizing up to 150% possible

Indoor or outdoor instillation

Built-in module level monitoring

Superior efficiency

SolarEdge 33,300W Three Phase Inverter - DCSS + AC + Fuses (Z4)
