The 2200W SolarEdge Home-Wave Inverter uses HD-Wave technology to provide an optimised installation and is marked as a milestone in inverter technology, the award winning HD-Wave technology is a record-breaker in efficiency tests.

Small, light, efficient and superbly reliable – SolarEdge’s single phase inverters with innovative HD-Wave technology are now a firm favourite for installers and end-customers alike.

SolarEdge inverters will only work with power optimisers, which control module-level Maximum Power Point Tracking and voltage management. This means that the inverter is only responsible for DC to AC inversion – this is the secret of the HD-Wave technology. It uses smaller, lighter and more reliable thin film capacitors, allowing SolarEdge to rid most of the heavy metal parts from the inverter.

The SetAPP Home-Wave Inverter does not contain an extra 'plug-in slot' for both the E-NET card and either ZigBee or GSM, this can instead be found in the Net version of the inverter.

Commissioning requires using SolarEdges' SetApp on your mobile device.

Further information on the designer and the monitoring can be found here.

AC attributes

Max power: 2200W

Max current: 10A

Number of phases: 1

DC attributes

Number of MPPT Not applicable

V range of MPPT Not applicable

Max power 3400W

Max current 6.5A

Max voltage 480V

Start up voltage Not applicable

System

Efficiency 99.2%

IP rating IP65

Built in protection Arc fault/Safe DC

Export limitations Possible using meter

Weight 7.8kg

Dimensions 280x370x142mm

Communication Ethernet, RS485, (Wifi, Zigbee, cellular optional)

Warranty (extensions) 12 years (20 or 25 years extensions available)

Key features

Superior efficiency

Lightweight

Oversizing up to 155% possible

Indoor or outdoor installation

SolarEdge have a system design tool, available here. Checking the status of a SolarEdge products warranty can be done here.

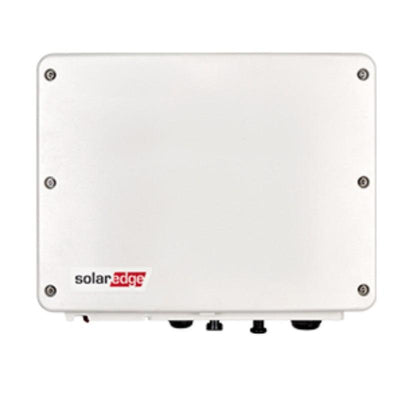

SolarEdge 2200W 1ph Home-Wave Inverter (SetAPP Inverter)
