The SolarEdge 17,000 three phase PV inverter combines sophisticated digital control technology with efficient power conversion architecture to achieve superior solar power harvesting and best-in-class reliability. The fixed-voltage technology ensures the solar inverter is always working at its optimal input voltage, regardless of the number of modules in a string or environmental conditions.

A proprietary data monitoring receiver has been integrated into the inverter and aggregates the power optimizer performance data from each PV module. This data can be transmitted to the web and accessed via the SolarEdge Monitoring Portal for performance analysis, fault detection and troubleshooting of PV systems.

AC attributes

Max power: 17000W

Max current (per phase): 26A

Number of phases: 3

DC attributes

Number of MPPT Not applicable

V range of MPPT Not applicable

Max power 22950W

Max current 23A

Max voltage 1000V

Start up voltage Not applicable

System

Efficiency 98.3%

IP rating IP65

Built in protection Arc fault/Safe DC

Export limitations Possible using meter

Weight 33.2 kg

Dimensions 540x315x260mm

Communication Ethernet, RS485, (Wifi, Zigbee, cellular all optional)

Warranty (extensions) 12 years (20 or 25 years extensions available)

Key features

Lightweight

Advanced safety - arc fault protection built in

Indoor or outdoor instillation

Built-in module level monitoring

Superior efficiency
SolarEdge have a system design tool, available for download here. See also the site designer manual and the full list of benefits of using solaredge. Checking the status of a SolarEdge products warranty can be done here.
photon summary
photon report
presentation
g99
warranty
datasheet
manual
quick installation guide

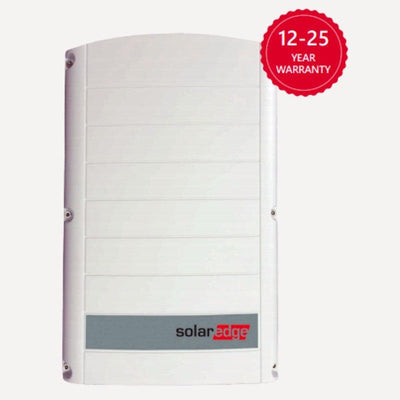

SolarEdge 17,000W Three Phase Inverter
