The SolarEdge 10,000 three phase PV inverter combines sophisticated digital control technology with efficient power conversion architecture to achieve superior solar power harvesting and best-in-class reliability. The fixed-voltage technology ensures the solar inverter is always working at its optimal input voltage, regardless of the number of modules in a string or environmental conditions.

A proprietary data monitoring receiver has been integrated into the inverter and aggregates the power optimizer performance data from each PV module. This data can be transmitted to the web and accessed via the SolarEdge Monitoring Portal for performance analysis, fault detection and troubleshooting of PV systems.

AC attributes

Max power: 10,000W

Max current (per phase): 16A

Number of phases: 3

DC attributes

Number of MPPT Not applicable

V range of MPPT Not applicable

Max power 13500W

Max current 16.5A

Max voltage 900V

Start up voltage Not applicable

System

Efficiency 98%

IP rating IP65

Built in protection Arc fault/Safe DC

Export limitations Possible using meter

Weight 16.4kg

Dimensions 280x370x142mm

Communication Ethernet, RS485, (Wifi, Zigbee, cellular optional)

Warranty (extensions) 12 years (20 or 25 years extensions available)

Key features

Low noise - no external fan

Lightweight

Oversizing up to 135% possible

Indoor or outdoor instillation

Built-in module level monitoring

Superior efficiency

You will need a suitable power optimiser for this inverter.

SolarEdge have a system design tool, available for download here. See also the site designer manual and the full list of benefits of using solaredge. Checking the status of a SolarEdge products warranty can be done here.

Part number: SE10K-RW0TEBNN4
photon summary
photon report
presentation
g98
warranty
datasheet
manual
quick installation guide

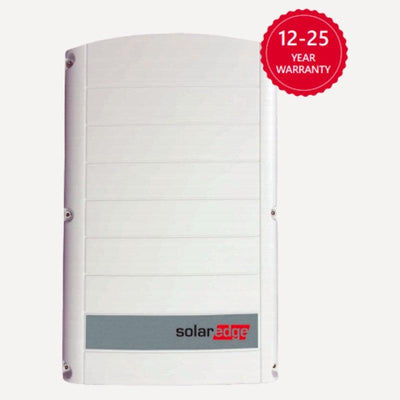

SolarEdge 10,000W Three Phase Inverter
