Remember the following details about the 80W 12V monocrystalline solar panel:

Please keep the following information in mind:

This solar panel is highly efficient and waterproof, making it perfect for permanent outdoor use. It is capable of charging 12V batteries to power various applications, including camper vans, motorhomes, boats, sheds, farms, as well as remote applications like telecommunications or monitoring equipment. Additionally, it can provide a direct power supply for applications not sensitive to changes in input voltage or current, such as electric motors or pumps. The panel comes with 5 meters of special solar cable designed to work at high temperatures, with minimal power losses. It is also equipped with male/female MC4 connectors for easy connection to other solar panels, your existing system, or 2.5mm extension cable. Furthermore, the long-lasting, high-efficiency monocrystalline solar cells and tough, sealed aluminum frame ensure years of consistent, free power. The waterproof design allows for use in all weather conditions. Moreover, this panel features innovative 5 busbar solar cells, which are more efficient than the 2, 3, or 4 busbar solar cells used in most other solar panels. They are able to extract more power from the same surface area, resulting in a smaller overall solar panel, making it ideal for space-limited applications. These solar cells are also suitable for warmer climates, as they operate well even in high ambient temperatures. If you plan to use this solar panel to charge a 12V battery or battery bank, please note that a solar charge controller/regulator is required. You can find a full range of solar charge controllers in the Solar Charge Controllers category of our online shop.

Solar Panel Specifications:

- Peak Power: 80W

- Maximum Power Voltage: 20.2V

- Maximum Power Current: 3.96A

- Open Circuit Voltage: 23.9V

- Short Circuit Current: 4.21A

- Power Allowance Range: +/- 3%

- Dimensions: 700 x 670 x 30 mm

- Weight: 6 kg

- 4 Mounting Holes: 9 x 11 mm

- 2 x 5m of High-Quality Single Core Solar Cable 2.5mm Cross Section

- Male and Female MC4 Connectors

Please keep in mind the following information:

Warranty:

This product comes with a 1-year workmanship warranty from Photonic Universe. Defective items will be repaired or replaced at their discretion. For more details, please refer to their Terms and Conditions. In addition, the solar cells are guaranteed to produce at least 90% of nominal power 10 years after purchase and at least 80% of nominal power 25 years after purchase. This warranty is provided by the manufacturer of the solar cells.

Installation:

This solar panel does not come with an installation manual, as it needs to be connected to other devices such as a solar charge controller or inverter, which are supplied with their own manual. If you plan to use this panel to charge a 12V battery, we recommend purchasing one of our solar charge controllers. All of our solar charge controllers include an instruction manual with detailed installation instructions and wiring diagrams. If you need help with installation or have any technical questions, we can provide free support. Please contact us by email or phone (see our Contact Us page for more information).

Documents and Links:

The following documents are available to download:

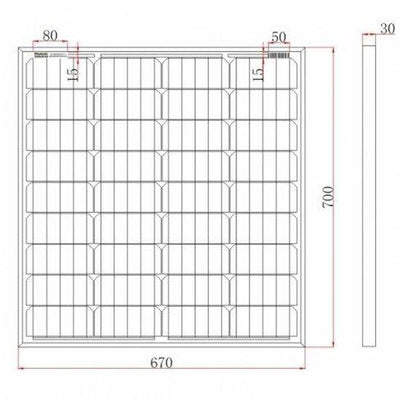

- Technical drawing of Photonic Universe 80W 12V solar panel SWD-80M (Front)

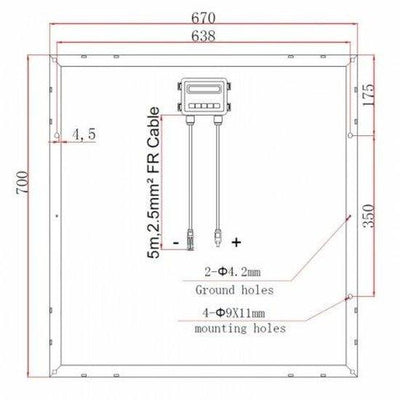

- Technical drawing of Photonic Universe 80W 12V solar panel SWD-80M (Back)

80W 12V solar panel with 5m cable
