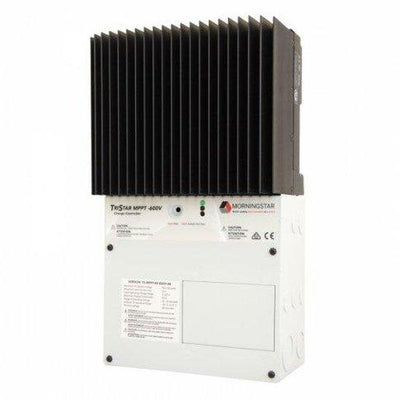

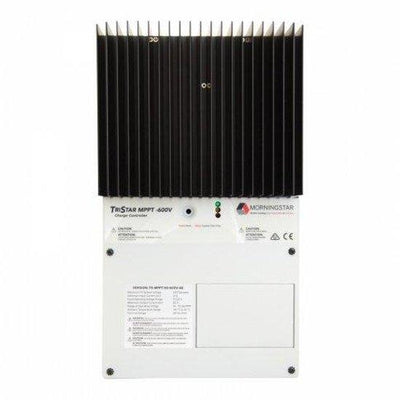

Morningstar TriStar 60A MPPT 600V Charge Controller

As an official distribution partner of Morningstar products across the globe, we are proud to offer solar charge controllers from this world-leading supplier. Innovative design from years of dedicated research and superior build quality enable these top-of-the-range solar charge controllers to extend battery capacity and life, maximize energy production, and consistently achieve high performance standards.

This high voltage Morningstar TriStar™ 60A MPPT 600V charge controller is suitable for large off-grid solar power systems with high input voltages. It uses TrakStar Technology™, which provides the best automatic power point tracking by sweeping the I-V curve faster than any other MPPT controller on the market, maximizing the energy harvest of the off-grid system. With 97.9% peak efficiency, low self-consumption, and subsequently less power losses through the off-grid system, this MPPT controller guarantees an excellent return on investment.

Due to its high voltage capabilities, this unique controller allows incremental adding of solar panels to an array with no string sizing issues and Voc voltages up to 525 Voc. This allows fewer combined circuits and lower current for long wire runs from the array to the controller. The controller is pre-set to protect 48V batteries while charging them, providing automatic cut off to prevent over-charging and deep discharge. It is also programmable to set for 24V, 36V, and 60V battery banks. It comes with a full range of electronic protection functions: overload, short circuit, high voltage, reverse polarity, high temperature, lightning and transient surges, reverse current at night.

Other key features include:

High voltage capacity: Maximum input voltage of 600V reduces voltage drop and wire costs
Reliability: Extremely high reliability with no cooling fans or moving parts and a robust thermal design for high operating temperatures
Efficiency: Incredibly high peak efficiency of 97.9% - an outstanding feat within the solar industry
Communication capabilities: Extensive communication capabilities with internet access for custom settings, data logging, and remote monitoring
Ease of use: Easy to install and use, with fully automatic operation, fault recovery, and up to 200 days of data logging

This controller can work with sealed, gel, and flooded batteries. The maximum allowed input solar power for this controller is 3200W (48V). The controller can also be connected to the TriStar remote meter with a 30m extension cable (sold separately) to view detailed charging parameters and remotely monitor your system.

Controller specifications:

Nominal system voltage: 48V
Maximum output current: 60A
Solar input voltage: Up to 600V
Terminals: 3 pairs (input, battery, output), plus ports for computer connectivity and an optional remote meter
Indicators: Multi-colour LEDs to indicate charging and battery status
Temperature sensor: Automatic compensation (-5mV/C/cell) operating between -30°C and +80°C
Battery operating voltage range: 16 - 72V
Self-consumption: < 3.5W
Working temperature: -40°C to +45°C
Humidity: 100% non-condensing
Enclosure: IP20 (indoor and vented)
Size: 392 x 221 x 149 mm
Weight: 8.98 kg
Mounting holes: For ease of installation

This product is covered by a 5-year manufacturer warranty. This product comes with an instruction manual (see the 'Documents' tab) which explains connections and operations. Application diagrams are available to view, which show common installations for this product, such as long wire, battery backup, or hybrid applications.

If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone.

The following documents are available to download:

Data sheet for TS-MPPT-60-600V-48 Morningstar TriStar 60A MPPT 600VDC charge controller
Instruction manual for TS-MPPT-60-600V-48 Morningstar TriStar 60A MPPT 600VDC charge controller

Morningstar TriStar 60A MPPT 600V charge controller for off-grid solar applications
