The solar controller described features two independent load outputs that are designed to provide consistent and low-ripple power for running equipment. Each of the two outputs can be set to 12V or 24V independently using a simple toggle-switch, irrespective of the battery voltage. This allows for the operation of sensitive equipment like CCTV or telecommunications, as well as multiple appliances with a mix of 12V and 24V inputs from a single off-grid system without requiring additional converters or stabilizers.

The controller utilizes Maximum Power Point Tracking (MPPT) technology to track the maximum power voltage point of solar panels, ensuring maximum efficiency of the solar system. It supports a wide solar input voltage range and can work with multiple panels with voltage up to 100V. The maximum combined input solar power allowed for this controller is 390W for a 12V battery system or 780W for a 24V system. It significantly increases efficiency when charging a battery with a higher voltage solar panel.

In terms of protection, the controller includes features such as reverse current prevention at night, automatic cut off to prevent over-charging and deep discharge, solar panel overvoltage, overload, short circuit, and reverse polarity protection. It also has self-diagnostic capability and highlights system errors using advanced fault-targeting technology.

The controller is compatible with various types of batteries, including lithium batteries, sealed/AGM, or gel lead acid batteries. It supports custom charging voltages for user-defined battery types.

Other features include independent load outputs, current limiting function (30A), multiple connectivity options, and advanced communication technology for monitoring and adjusting charging parameters and controller settings. This can be done through a mobile app or computer program, and there's an option to create a user-defined battery type with charging parameters specific to the user's battery. Additionally, it has a socket for connecting a remote temperature sensor to optimize the charging process.

Controller specifications:

- The controller uses the most advanced MPPT technology to ensure high efficiency (>95%) of your solar system.

- It offers fully automated operation and auto 12/24V selection.

- There are 4 pairs of terminals (solar panel, battery, load 1, load 2) for wires up to 10mm^2.

- The maximum solar panel voltage is 100V.

- Maximum solar panel power is 390W (12V) / 780W (24V).

- It is equipped with a temperature sensor for automatic compensation (-3mV/°C/2V).

- Load output power is 100W (load 1) / 36W (load 2).

- Load ripple is 100mV/200mA.

- The controller has comprehensive electronic protection features.

- It also features a communication port: RS485/RJ45 interface.

- Grounding: negative common ground.

- Current limiting function is at 30A.

- Self-consumption is ≦35mA (12V) / ≦22mA (24V).

- Working temperature range is -30°C to +65°C.

- Size: 17.8 x 16.2 x 8.01 cm.

- Mounting dimension: 12 x 15.3 cm.

- Weight: 1.5kg.

- Multiple mounting holes (5mm diameter) for ease of installation.

- The product is covered by a 1-year manufacturer warranty.

Installation:

- The unit comes with a detailed user manual explaining wiring and operations (see Documents tab).

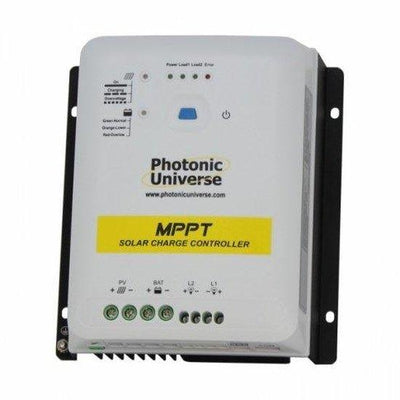

High Efficiency 30A MPPT Solar Charge Controller with Dual Fixed Load Outputs for Solar Panels up to 390W (12V) / 780W (24V) up to 100V
