Remember the following details about the 60W 12V folding solar charging kit:

This kit includes:

- Two 30W folding monocrystalline solar panels

- A 10A solar charge controller with enhanced protection functions

- Adjustable aluminum stand, handle, and latches

- 5m cable with a battery plug and a fuse

- Battery crocodile clips for easy connection

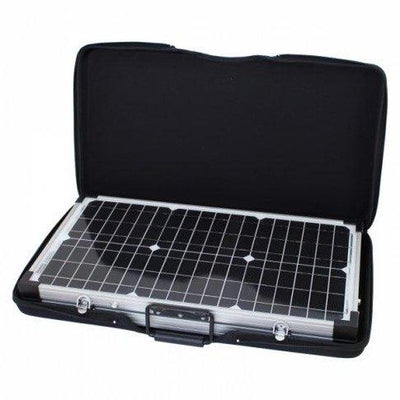

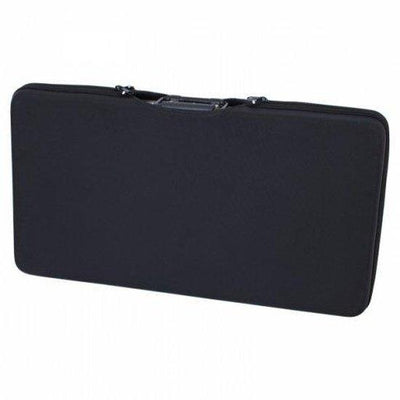

- Storage/protective case

- Installation manual

Key features of this premium quality product:

- Completely waterproof, including the solar charge controller (IP67-waterproof solar controller), suitable for all weather conditions

- High efficiency 30W + 30W folding solar panels made of high-quality monocrystalline solar cells

- Sturdy protective case made with a layer of foam to prevent accidental damage

- Advanced fully automated 10A solar charge controller with complete overcharge protection and support for different battery types

- Designed for free power charging of 12V batteries in vehicles, boats, motorhomes, caravans, campers, and more

- Comes with everything needed for battery charging and is easy to set up and adjust

The solar charge controller included in the kit offers several protection functions, such as overcharge protection, reverse current prevention, incorrect polarity, and short circuit protection. It uses PWM (Pulse Width Modulation) technology to increase charge acceptance and prolong battery life.

Additionally, the controller features advanced communication technology that allows users to monitor and program parameters through various methods:

1) Connection to a remote meter with an LCD screen

2) Connection to a Wi-Fi module and monitoring or adjusting parameters through a mobile app

3) Connection directly to a PC or laptop for monitoring and adjustment via a computer program

Using these communication methods, users can access and adjust various charging parameters and personalize load settings. The kit is suitable for sealed, gel, and flooded 12V batteries, allowing for battery type selection for maximum efficiency of charging.

Here are the specifications for the solar panel:

- Peak power: 60W

- Maximum power voltage: 17.5V

- Maximum power current: 3.4A (2 x 1.7A)

- Open circuit voltage: 21.6V

- Short circuit current: 3.6A (2 x 1.8A)

- Power allowance: +/- 3%

- Dimensions: 35 x 65 x 6cm (folded)

- Weight: 7.5kg

The product is covered by a 1-year warranty. The workmanship warranty on the solar panel is provided by Photonic Universe, while the solar charge controller warranty is provided by the solar controller manufacturer.

In addition, the solar cells are guaranteed to produce at least 90% of nominal power 10 years after purchase and at least 80% of nominal power 25 years after purchase. This warranty is provided by the manufacturer of solar cells.

Installation:

- The product comes with an instruction manual that explains connections and operations.

- Advanced users will also benefit from a separate detailed manual for the solar controller (see the Documents tab).

- While the kit is fully waterproof, the Anderson plug and metal connectors on the battery cable should be kept away from moisture.

If you need help with installation or have any technical questions, we can provide FREE support. Please contact us by email or phone.

60W 12V folding solar charging kit for motorhome, caravan, boat or any other 12V system
