A power inverter is a device that converts the output from a battery (DC, or direct current) into 230V AC mains electricity (alternating current), which is the type of electricity supplied by utility companies to power standard domestic appliances such as TVs, fridges, radios, lights, and to charge laptops and mobile phones. By connecting a power inverter to a battery, you can power household appliances in areas with no access to mains electricity, such as in motorhomes, caravans, boats, farms, or any remote location. Inverters are also great for off-grid and backup systems for accidental power cuts.

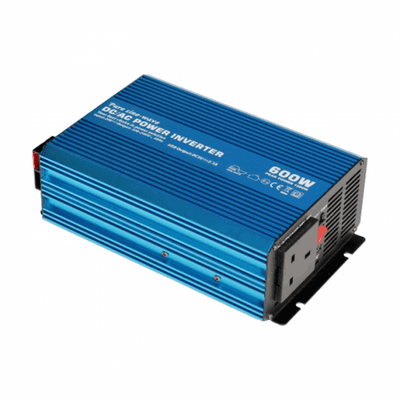

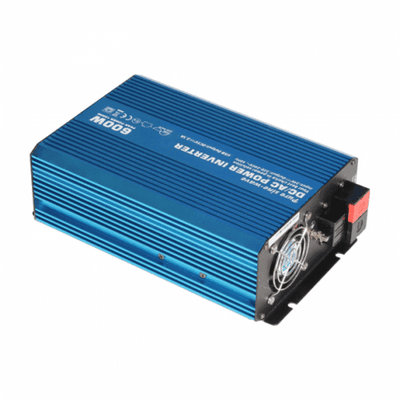

This is a 600W 24V pure sine wave power inverter capable of generating 600W of continuous power and up to 1200W of power at peak times. The pure sine wave output is almost identical to normal mains electricity and is suitable for a broader range of appliances compared to modified sine wave inverters. It is also more efficient and suitable for appliances with electric motors, unlike modified sine wave inverters.

The inverter includes important protection and safety features such as over-discharge, overload, overheating, and short-circuit automatic shutdown, along with a powerful USB port for faster charging of mobile phones, MP3 players, and other USB-compatible devices (2.1A). It comes with 0.5m battery cables (6mm2 cross-section) and is covered by a 1-year warranty.

If you are unsure whether 600W is sufficient for your appliances, there is a table of typical power consumption of domestic appliances available in the product details and specifications.

The specifications are as follows:

- Continuous power: 600W

- Surge power: 1200W (1/2 second)

- Input: 24V (20-30V) DC

- Output: 230V AC

- Output frequency: 50 Hz

- Output waveform: pure sine wave

- THD: < 3%

- Peak efficiency: 90%

- Low battery shut down: 19.4V-20.0V DC

- Low battery alarm: 20.0V-21.0V DC

- High voltage shut down: 30.0V +/- 1V DC

- Size: 26 x 15 x 8 cm

- Weight: 2.0 kg

The inverter can be connected to a 24V battery or battery bank and can be added to an existing 24V solar system. If you have any technical questions or need installation support, you can contact the manufacturer for free support.

Please refer to the user manual for more information on wiring and operations.

600W 24V pure sine wave power inverter 230V AC output (UK socket), with powerful USB charging port
