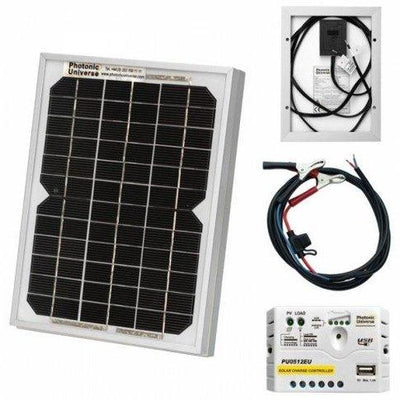

This 5W solar charging kit includes:

- High efficiency 5W monocrystalline solar panel with 3m cable

- Advanced 5A solar charge controller with USB charging port and battery protection functions

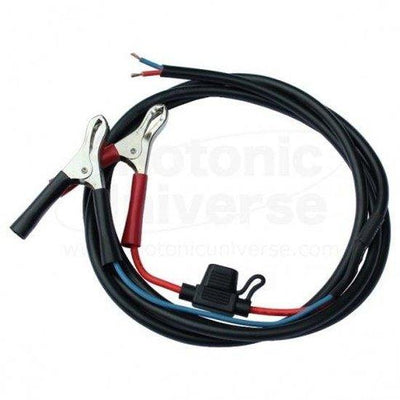

- 2m battery cable with crocodile clips and a fuse

- User manual with installation instructions

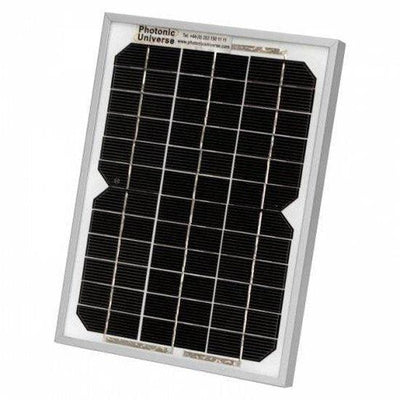

5W Solar Panel:

This kit comes with a waterproof high-efficiency 5W solar panel. It is perfect for permanent outdoor use and provides free power for charging a 12V battery, which can then power various devices for many applications (e.g., 12V lights, fan, small water pump, electric fence, etc.), or for trickle charging a larger battery to maintain its charge level, such as in a camper, car, van, motorbike, or boat.

The long-lasting, high-efficiency, monocrystalline cells and the tough, sealed, aluminum frame will provide years and years of consistent, free power. The waterproof design ensures that the panel can be used in all weather conditions.

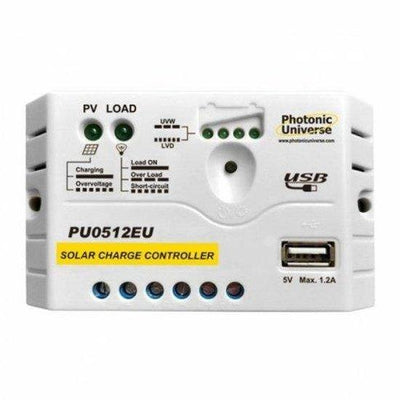

5A Solar Charge Controller:

This kit includes an advanced 5A solar charge controller designed to protect your 12V battery while charging it. This advanced controller has a 5V USB port (1.2A output) offering fast charging of USB compatible devices (e.g., mobile phones, tablets, mp3 players, etc.), as well as a pair of load terminals for connecting 12V loads (such as lights) if desired. This solar controller features a full range of safety functions, such as protection against reverse current at night (from the battery back through the solar panel), overcharge/discharge, overvoltage, overload, short circuit, etc.

The PWM (Pulse Width Modulation) technology used in this controller increases charge acceptance and prolongs the life of your battery. PWM technology can also recover some lost battery capacity. Other features include bright LED indicators to show the battery state of charge as well as the status of the solar panel and 12V load. An "on/off" button is also available for the load. The controller is compatible with sealed, gel, and flooded batteries - the battery type can be selected by the user.

Additional items:

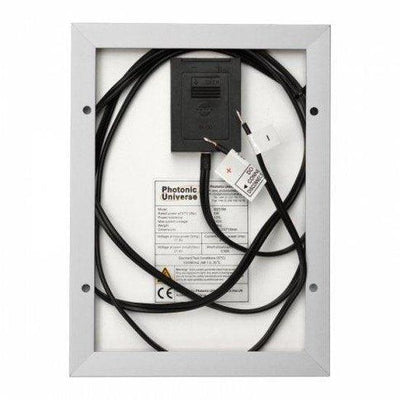

The panel comes with 3m solar cable attached to the waterproof junction box on the back, for connection to the solar charge controller. In addition, the solar kit includes a 2m battery cable with a fuse and crocodile clips for ease of connection to your battery.

Solar panel specifications:

- Peak power: 5W

- Maximum power voltage: 17.5V

- Maximum power current: 0.20A

- Open circuit voltage: 21.6V

- Short circuit current: 0.30A

- Power allowance range: +/- 3%

- Dimensions: 25 x 19 x 2 cm

- Weight: 0.8 kg

- 4 mounting holes

- 3m cable attached

Charge controller specifications:

- Charging current: 5A

- Load current: 5A

- Rated voltage: 12V

- LEDs to indicate battery state of charge, solar panel, and load status

- Self-consumption: 12V - 5mA ; 24V - 7mA

- Working temperature: -35°C to +55C

- USB Interface: 5V DC / 1.2A

- 3 pairs of terminals for wire up to 2.5mm2

- Size: 109.7 x 65.5 x 20.8 mm

- Weight: 90 g

- 2 x 4.5mm mounting holes

This product is covered by a 1-year warranty, including the warranty on the solar charge controller and workmanship warranty on the solar panel provided by Photonic Universe.

Installation:

The user manual supplied with the solar kit contains instructions for quick and safe installation. Advanced users will also benefit from an additional user manual for the solar controller.

Please note:

The solar charge controller in this kit is not waterproof and should be mounted indoors. If you need help with installation or have any technical questions, we can provide FREE support - please contact us by email or phone.

5W 12V solar trickle charging kit with 5A solar controller and battery cable with crocodile clips
