A power inverter is a device that converts the output from a battery (DC, or direct current) into 230V AC mains electricity (alternating current). 230V AC is the type of electricity supplied by utility companies to run standard domestic appliances like TVs, fridges, radios, lights, or to charge a laptop/mobile phone, etc. Connecting a power inverter to a battery allows you to power household appliances in areas without access to mains electricity, such as in a motorhome, caravan, boat, farm, or any other remote location. Inverters are also perfect for off-grid and backup systems to cope with accidental power cuts.

This is a 3000W 12V pure sine wave power inverter which can generate 3000W of continuous power and up to 6000W of power at peak times (peak time reserve capacity is useful if more energy is required to start an appliance than for its continuous running). This is a pure sine wave type of inverter, which means that the 230V AC output harmonically follows a smooth sine wave and is almost identical to normal mains electricity. Pure sine wave output is far superior to square sine wave or modified sine wave output for running appliances. This is because it is suitable for a broader range of appliances, such as those with electric motors, and is more efficient than modified sine wave inverters. The inverter also features important protection and safety features, including over-discharge, overload, overheating, and short-circuit automatic shutdown.

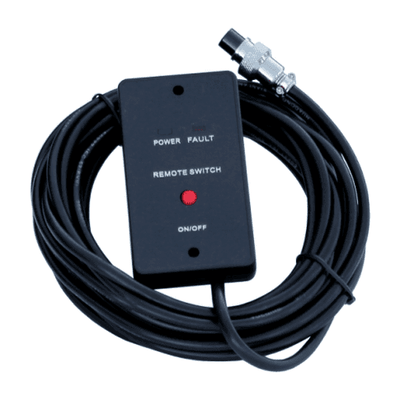

Additionally, it has a powerful USB port for faster charging of mobile phones, MP3 players, and other USB-compatible devices (2.1A). The inverter is supplied with a remote on/off switch with a 5m cable, allowing for remote monitoring and powering of the inverter.

Specifications:

- Continuous power: 3000W

- Surge power: 6000W

- Input: 12V (10-15.5V) DC

- Output: 220-240V AC

- Output frequency: 50-60 Hz

- Output waveform: pure sine wave

- THD: less than 3%

- Peak efficiency: 87%

- USB output: 2.1A

- Low battery alarm: 11.5V +/- 0.5V DC

- Low battery shut down: 10.5V +/- 0.5V DC

- High voltage shut down: 15.5V +/- 0.5V DC

- Size: 49 x 23 x 11 cm

- Weight: 7.7 kg

- Warranty: 1 year

This product comes with a user manual that explains wiring and operations. An adaptor may be used for more sockets, provided that the total power consumption of all appliances connected to this inverter is within 3000W.

For users of our solar charging systems, this inverter can be connected to your 12V battery/battery bank alongside any of our solar systems or charging kits. If you need help with installation or have any technical questions, free support is available—please contact us by email or phone.

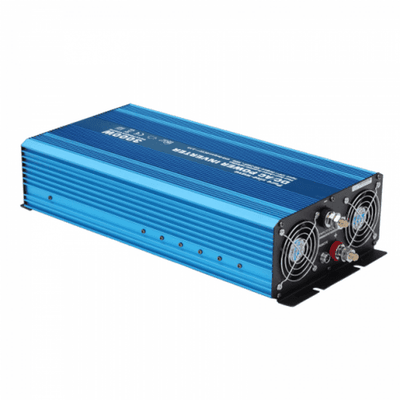

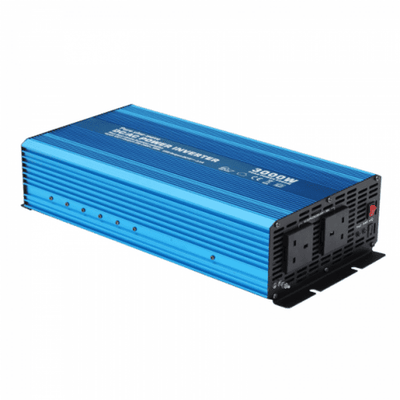

3000W 12V pure sine wave power inverter 230V AC output, with remote on/off switch
