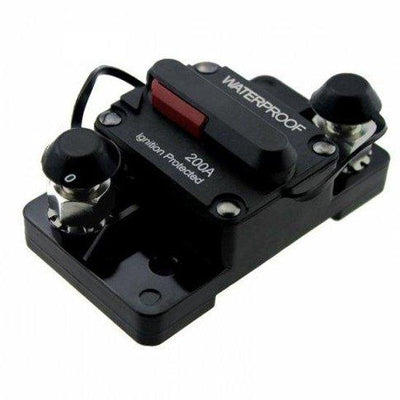

200A 12V/24V/48V automatic over-current DC circuit breaker

This 200A circuit breaker combines the functions of a resettable 200A fuse. It is perfect for any DC system that requires over-current protection and is suitable for a wide range of DC system voltages from 12V to 48V.

Similar to a fuse, this circuit breaker is designed to protect the system from over-current resulting from high power draw, short-circuits, wiring mistakes, equipment faults, or any other high current event. The circuit breaker is resettable, making it a superior alternative to fuses that require replacement when blown.

The circuit breaker is made from strong thermal plastic designed to withstand high temperatures (UL94V-0 rated). Additionally, it is water-resistant (IP67 rated) and ignition-protected (meets international standards S.A.E. J1625, J1171, UL1500).

This product is suitable for various DC applications, including connecting solar or wind charge controllers to batteries, between off-grid inverter DC input and batteries, DC power distribution or charging circuits, and other DC automotive and marine applications. For more information, click on the "Details and Specifications" tab.

Circuit breaker specifications:

- Rating: 200A

- Type: Thermal overcurrent protection device

- Material: Thermal plastic (UL rated 94V-0)

- Operating temperature: -32°C to 82°C

- Storage temperature: -34°C to 149°C

- Terminal size: M10

- Enclosure: IP67

- Size: 86 x 48 x 37 mm

- Weight: 138g

- Waterproof rating: IP67

- International standard ratings (S.A.E. J1625, J1171, UL1500)

Please note that this circuit breaker is intended for surface mounting.

The following documents are available for download:

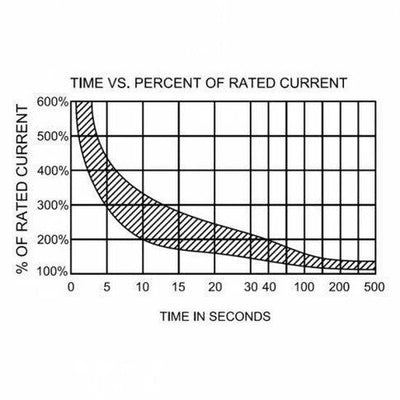

- Time vs. Rated Current graph for Photonic Universe 200A Circuit Breaker (CB200)

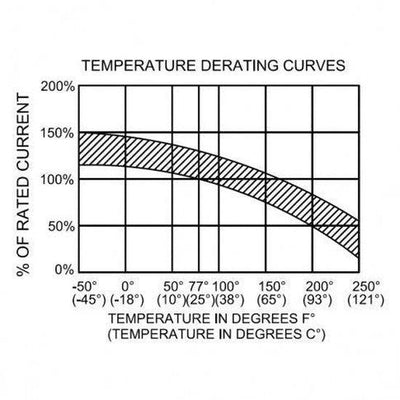

- Temperature derating graph for Photonic Universe 200A Circuit Breaker (CB200)
