This 180A circuit breaker combines the functions of a resettable 180A fuse and an on/off switch in one unit. It is ideal for any DC system that requires both over-current protection and manual isolation of the circuit. The breaker is suitable for a wide range of DC system voltages from 12V to 48V. Like any fuse, this circuit breaker is designed to protect the system from over-current resulting from high power draw, short-circuits, wiring mistakes, equipment faults, or any other high current event. The circuit breaker is resettable, making it a superior alternative to fuses that require replacement when blown.

The breaker also has a manual-break option, allowing it to be used as an isolator On/Off switch for simple disconnection and reconnection of the system. Made from strong thermal plastic engineered to withstand high temperatures (UL94V-0 rated), the breaker is also water-resistant (IP67 rated) and ignition protected, meeting international standards S.A.E. J1625, J1171, UL1500. This product is suitable for a wide range of DC applications, including connecting solar or wind charge controllers to batteries, between off-grid inverter DC input and batteries, DC power distribution or charging circuits, and other DC automotive and marine applications.

Rating: 180A

Type: Thermal overcurrent protection device

Material: Thermal plastic (UL rated 94V-0)

Operating temperature: -32°C to 82°C

Storage temperature: -34°C to 149°C

Terminals size: M6

Enclosure: IP67

Size: 74 x 48 x 37 mm

Weight: 110g

Waterproof rating: IP67

International standard ratings (S.A.E. document_number_1, document_number_2, plate_number_1)

Please note that this circuit breaker is intended for surface mounting.

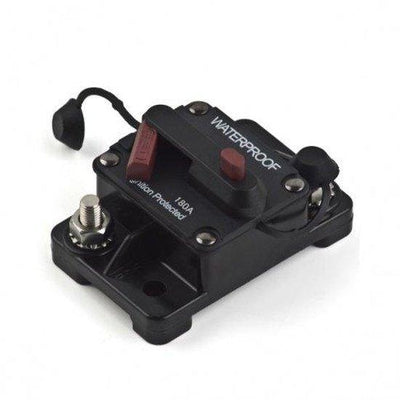

180A 12V/24V/48V Automatic over-current DC circuit breaker / switch
