The new Growatt X range of 3-phase inverters is 40% lighter and more compact then the previous model, which combined with a new, sleeker design makes the KTL3-X range a good choice for 3-phase projects.

The new OLED screen makes settings changes on the unit itself easier then ever.

Note: These products are not compatible with the standard Shinelink or Shinevision monitoring options and require the Shinelink-X for monitoring.

Now comes with a 10 year warranty as standard.

AC attributes

Max power: 40KW

Max current: 66.6A

Number of phases: 3

DC attributes

Number of MPPT 4
Strings per MPPT 2

V range of MPPT 200 - 1000V

Max power 60KW

Max Isc current 32A

Max voltage 1100V

Start up voltage 250V

System

Max efficiency 98.8%

IP rating IP65

Built in protection AC/DC Type II SPD

Export limitations With meter

Weight 29.5kg

Dimensions 580x435x230mm

Communication USB, RS485 (wifi, GPRS, 4G, optional)

Warranty (extensions) 10 years

Key features

Compact design
Easy-to-use OLED display

Flexible communication options

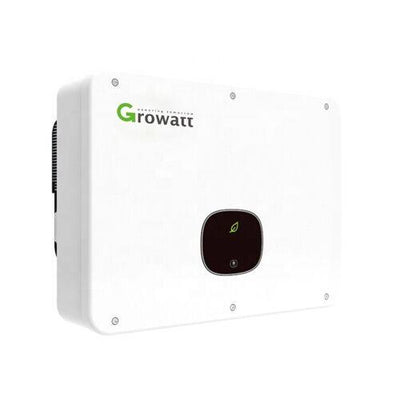

Growatt MID 40 KTL3-X Three Phase Inverter (4x MPPT)
