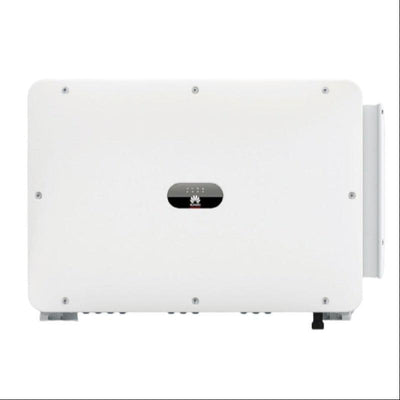

The SUN2000 115kW 3 phase string inverter by Huawei is a high efficiency, high reliability option in the three phase string inverter market. It has a peak efficiency of 98.8% and a EU efficiency of 98.6%, meaning its maintains a high efficiency over its entire loading range.

The 115KTL also has built in type II surge arresters for DC and AC as well as a safe fuse free design that reduces maintenance requirements.

Lastly the 115KTL has 10 built in MPPT trackers to allow greater flexibility in string layout and ensures more can be got out of any array.

AC attributes

Max power: 115kW

Max current: 182.3A

Number of phases: 3

DC attributes

Number of MPPT 10

V range of MPPT 200 - 1000V

Max Isc current 40A

Max voltage 1100V

Start up voltage 200V

System

Max efficiency 98.8%

IP rating IP66

Built in protection Type II AC/DC surge arresters, reverse polarity

Export limitations With smartlogger

Weight 93kg

Dimensions 1035x700x365mm

Communication RS485 (WLAN, 4G optional)

Warranty 5 years

Key features

20 strings intelligent monitoring

Max efficiency of 98.8%

Indoor or outdoor installation
Reliable - Type II surge arresters for AC and DC

Datasheet

Huawei SUN2000 115KTL Three Phase Inverter M2
