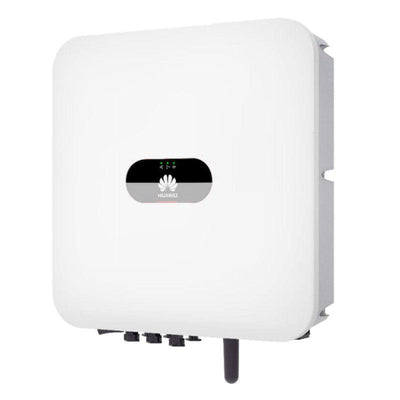

The Smart Energy Controller (SUN2000- 3 / 3.68 / 5 / 6KTL-L1) is Huawei new single-Phase inverter and is direct compatible with their own Huawei Luna battery.

AC attributes

Max power 6kW

Max current 27.3A

Number of phases 1

DC attributes

Panels:

Number of MPPT 2

V range of MPPT 90 - 560V

Max power 9kW

Max current 18A

Max voltage 600V

Start up voltage 100V

Batteries:

Max power 5 kW*

Max current 14.2A

Battery types Lithium

Battery capacity 50 - 2000Ah

System

Max efficiency 98.4%

IP rating IP65

Built in protection** AC and DC surge protection Type II, arc fault

Export limitations Possible using CT or meter

Weight 27kg

Dimensions 365x365x156mm

Communication RS485, WLAN, (Ethernet, 4G optional)

Warranty (extensions) 10 years

Key features

AI Self leaning new arc detection

Real-time data at anytime and anywhere

Performance data back-up

Smart I-V Diagnosis

*This is the maximum output of the batteries but output power varies with number of batteries installed, a single battery will only output 2.5kW.

** for full list of protections see datasheet.

Datasheet
Manual
Quick guide
G99 Certificate
Warranty

Huawei 6kW L1 HV 1ph Hybrid Inverter
