The TL3-X series from Growatt are compact and light three phase inverters. With two MPPTs, the MOD 3-15K TL3-X series can be connected to two strings, and are therefore suitable for connecting two different panel arrays.

The Growatt TL3-X range offer a suitable solution for larger 3-phase residential systems, as well as smaller commercial systems. The compact design enables ease of transportation and installation, whilst the IP66 rating enables flexibility in location.

The ultra-low start-up and wide working voltages enable wider power generation windows.

AC attributes

Max power: 5000W

Max current: 8.3A

Number of phases: 3

DC attributes

Number of MPPT 2

V range of MPPT 140 - 1000V

Max power 7500W

Max Isc current 16A

Max voltage 1100V

Start up voltage 160V

System

Max efficiency 98.3%

IP rating IP66

Weight 12.5kg

Dimensions 425x387x178mm

Communication USB/RS485 (Optional- WiFi/GPRS/LAN/RF)

Key features

Dual independent MPPTs
Built-in DC switch
High maximum efficiency 98.6%
Touch key and OLED display
Optional AFCI (Arc-Fault Circuit Interrupter function)
IP66 protection grade
Easy installation

Quick Guide
User Manual
Datasheet
G98 Certificate
G99 Certificate
G100 Certificate
System Guide

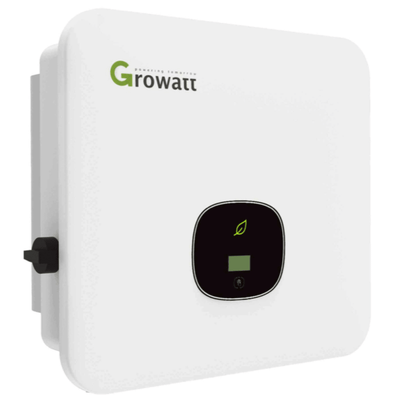

Growatt MOD 5000 TL3-X Three Phase Inverter
