The new Growatt X range of 3-phase inverters is 40% lighter and more compact then the previous model, which combined with a new, sleeker design makes the KTL3-X range a good choice for 3-phase projects.

The new OLED screen makes settings changes on the unit itself easier then ever.

Note: These products are not compatible with the standard Shinelink or Shinevision monitoring options and require the Shinelink-X for monitoring.

Now comes with a 10 year warranty as standard.

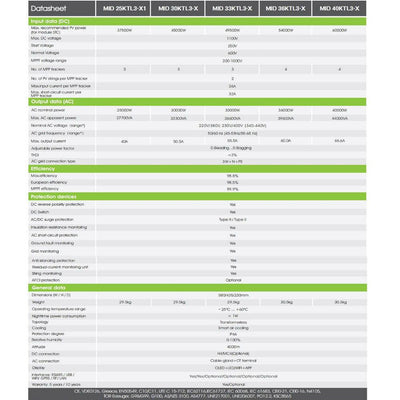

AC attributes

Max power: 25000W

Max current: 40.2A

Number of phases: 3

DC attributes

Number of MPPT 2
Strings per MPPT 3

V range of MPPT 200 - 1000V

Max power 32500W

Max Isc current 32A

Max voltage 1100V

Start up voltage 250V

System

Max efficiency 98.6%

IP rating IP65

Built in protection AC/DC Type II SPD

Export limitations With meter

Weight 23kg

Dimensions

525x395x222mm

Communication

USB, RS485 (wifi, GPRS, 4G, optional)

Warranty (extensions)

10 years

Key features

Compact design
Easy-to-use OLED display

Flexible communication options

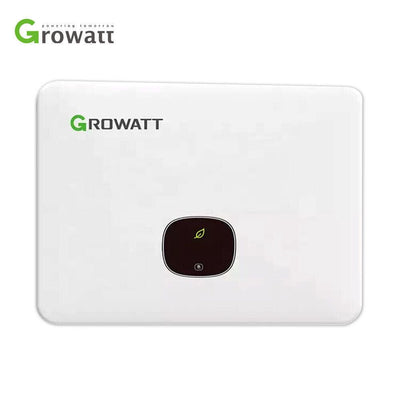

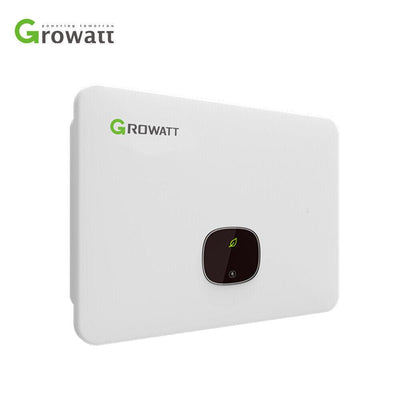

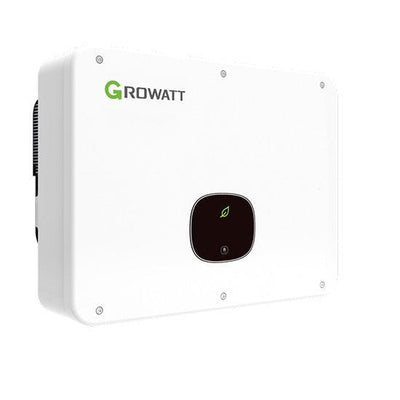

Growatt MID 25 KTL3-X Three Phase Inverter with dual MPPT
