The latest and most powerful Growatt inverters yet. The MAX TL3 inverters are ideal for medium-large scale commercial roofs and groundmount projects. With 6 MPPTs as standard, the inverters offer unparalleled design flexibility when it comes to string configurations. Lightning and fire protection are also included as standard, along with IV diagnosis on individual strings to detective any issues.

Note: This inverter requires Shinelink-X, ShineWIFI-X or ShineLAN-X for monitoring.

This inverter is currently not compliant to the ENA type test register however Growatt expect this inverter to be approved in the coming weeks. (as of April 2023)

AC attributes

Max power: 60kW

Max current: 96.6A

Number of phases: 3

DC attributes

Number of MPPT 6
Strings per MPPT 2

V range of MPPT 200 - 1000V

Max power 78kW

Max Isc current 25A per MPPT

Max voltage 1100V

Start up voltage 250V

System

Max efficiency 99%

IP rating IP65

Built in protection AC/DC type II SPD reverse polarity

Export limitations Meter with 3 ct clamps

Weight 82kg

Dimensions 860x600x300mm

Communication USB, RS485 (opt: GPRS)

Warranty (extensions) 10 years

Key features

6 MPPTs
Maximum efficiency of 99%
DC and AC power supply

12 strings intelligent monitoring and fast trouble-shooting

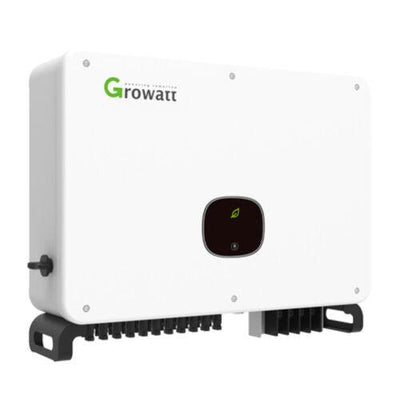

Growatt 60 KTL3 Three Phase Inverter - 6 MPPT
