The new X range of residential inverters is a smaller, lighter version of it's -S predecessor. The sleek, minimal design makes it an aesthetic choice at a competitive price. The low start up voltage and wide voltage range allow flexibility in string design.

Note: These products are not compatible with the standard Shinelink or Shinevision monitoring options and require the Shinelink-X for monitoring.

MIC inverters require a meter to achieve the export limit function.

AC attributes

Max power: 2500W

Max current: 11.9A

Number of phases: 1

DC attributes

Number of MPPT 1

V range of MPPT 60 - 550V

Max power 3500W

Max Isc current 16A

Max voltage 550V

Start up voltage 80V

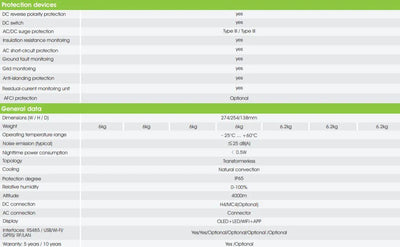

System

Max efficiency 97.6%

IP rating IP65

Built in protection Type III AC/DC surge

Export limitations With meter or CT

Weight 6kg

Dimensions 274x254x138mm

Communication RS485, USB, (wifi, GPRS,RF,LAN optional)

Warranty (extensions) 10 years

Key features

Lightweight

Build in SPD protection

Indoor or outdoor installation

Datasheet
Manual
Quick guide
G98 certificate
Warranty

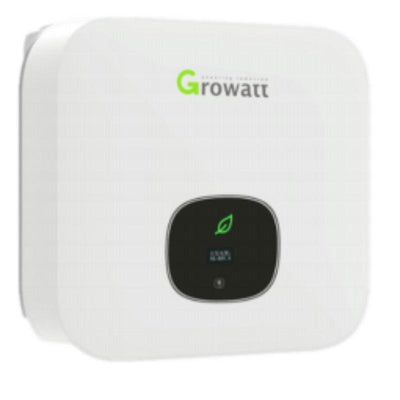

Growatt MIC 2500 TL-X single phase inverter (no DC switch)
