ivEnergy 3.6kw GEN1 Hybrid Complete kit to charge from grid or solar with 5.2kWh Battery

To purchase 5 yr extended warranty please add warranty to your basket

Suitable for charging from Economy 7 such as Octopus Go. For detailed explanation of how to maximise Economy 7 essential information to work out which battery storage options is best for you please visit - Understanding Economy 7

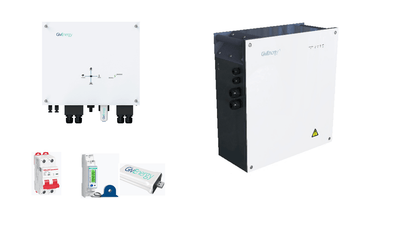

Complete kit to charge from grid or solar includes:

1 x GivEnergy 3.6kW Hybrid Inverter Charger
#2: GIV-HY3.6

1 x GivEnergy 5.2kWh Battery. For additional batteries
#2: GivEnergy 5.2kWh LiFePO4 Battery

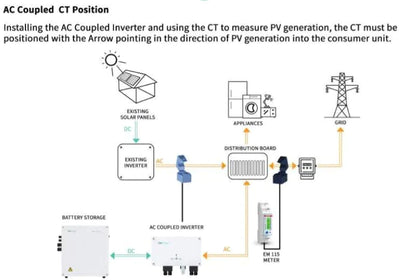

1 x EM115 Meter with CT Clamp

#2: GivEnergy EM115 Meter with CT Clamp

1 x WiFi Dongle

#1: GIV-WIFI-DONGLE

1 x Battery Isolator

#1: GIV-BAT-ISO-100A

*Collections are not permitted due to health & safety regulations*

Up to 5 batteries can used with each AC charger/hybrid inverter, multiple charger/inverters can be installed.

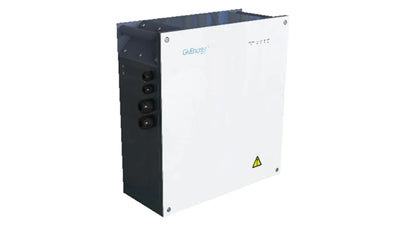

The 5.2 kWh battery pack uses a new battery case design with useful handles to make moving as easy as possible. The batteries incorporate the same Primsatic cell technology as the 2.4 and 8.2kWh batteries, ensuring lower wear and reduced thermal hotspots. The LiFePO4 chemistry is the safest cell technology on the market, whilst GivEnergy in particular offer higher capacity cells, higher density cells and monitor individual cell voltage rather than overall pack voltage.

Electrical

Total capacity: 5.2 kWh

Usable capacity: 5.2 kWh

Nominal V: 48V

Operating V range: 44.4 - 57.6V

Max charging V: 60V

Max charge I: 60A

Max discharge I: 60A

System

Life: 10 years at 80% DOD

Chemistry: LiFeP4

Dimensions: 520*480*230mm

Weight: 60 kg

Temperature range: 0 - 45 degrees C

IP rating: IP65

Warranty: 52MWh or 10 years, whichever is first

Charger:

This 3.6kW hybrid unit will charge from surplus PV generation, and also from the grid if you're on an economy tariff. Wi-fi comes as standard and gives access to the powerful monitoring platform, along with remote, site-specific firmware upgrades and troubleshooting via web browser or app.

GivEnergy 5.2kwh with 3.6kw GEN1 Hybrid inverter Complete kit to charge from grid or solar
