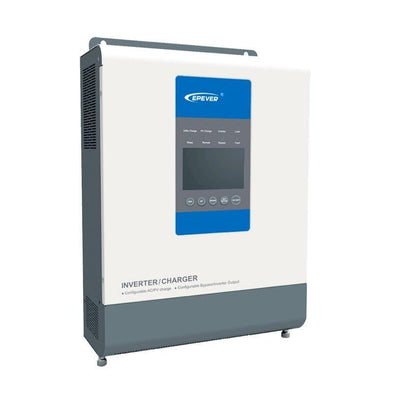

EPEVER UPower Series Solar Hybrid Off Grid Inverter 5000VA / 48V & MPPT Charge Controller 4000W / 80A (UP5000-M8342)

Solar Hybrid Inverter. MPPT Solar Charger. Pure Sine Inverter.

Industrial Grade Specification
Quick Transfer Speed and High Efficiency
Large LCD Display and Control with optional PC software
2 Year Warranty

CE & RoHS Certified

A Hybrid fully configurable Inverter Charger combining MPPT Solar Charging and Inverter function in one reliable solar off-grid package. Suitable for Industrial, Commercial, Scientific, Residential and Marine use.

Available in 1KVA, 2KVA, 3KVA and 5KVA models.

Industrial grade design with 2 Year Warranty:

Uses multi-core processor design and an advanced MPPT control algorithm in an IP30 enclosure.
SPWM Pure Sine Wave output. Low Harmonic Distortion (≤3%) suitable for industrial, scientific and medical applications.
MPPT technology with efficiency up to 99.5%
AC side / Utility side 2P circuit breakers inbuilt (reduces installation space and time)
Battery temperature compensation function
Extensive electronic protection
Can deliver instantaneous Output Surge Power twice the device rated power.
For Critical UPS Power Applications, inbuilt Relay Interface can activate an external power source (e.g. Auto Start/Stop Generator) when Battery voltage is critically low.

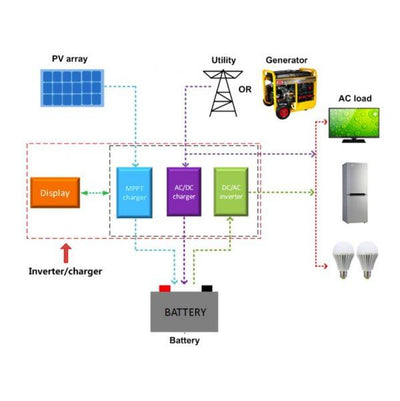

MPPT Solar Charge algorithm maximises conversion efficiancy up to 99.5%. Battery Charging function configurable to suit local environment preferences and reliabilty requirements in multiple priority modes:

Solar charging priority over Utility (to balance low running cost with reliability)
Utility charging priority over Solar (to maximise charge in cloud conditions)
Solar-only charging (to achieve the lowest running cost)
Utility & Solar combined simultaneous charging

Inverter DC-AC module uses SPWM to produce Pure Sine wave output suitable for residential and commercial/scientific applications.

AC Inverter Module can be configured to run on:

Always Battery source. This creates a continuously stable output for systems requiring UPS (Uninterrupted Power Supply), e.g. telecommunication systems or medical devices, or for countries where electrical power is unstable.
Utility Power as default. For example when a Boat is connected to shore power.
Configure output Voltage between 230VAC and 220VAC, and frequency between 60Hz or 50Hz

Control and Monitoring: Large 4.2-inch inbuilt display with real-time operational data. Control and Monitor the system with PC Software or Android App.

Optional Communication Cable (USB to RS485) required for PC connection.
Optional eBox-WiFi required for Mobile Phone.
PC Software is required (Download here).

Electrical Specification:

UPower Series	1 KVA (UP1000-M3212)	2 KVA (UP2000-M3322)	3 KVA (UP3000-M3322)	3 KVA (UP3000-M6322)	5 KVA (UP5000-M8342)
System Battery Voltage (and Range)	12 V DC (10.8～16VDC)	24 V DC (21.6～32VDC)			48 V DC (43.2～64VDC)
Output Power (15min.)	1000W (Continous 800W)	2000W (Continous 1600W)	3000W (Continous 2400W)	3000W (Continous 2400W)	5000W (Continous 4000W)
Max. Surge Power	2000W	4000W	6000W	6000W	10000W
Inverter Output Voltage / Frequency	220VAC±3%, 230VAC (-7%～+3%) / 50Hz/60Hz
Inverter Output Wave	Pure Sine Wave
Distortion THD	≤3% (12V or 24V resistive load)
AC Utility Input Voltage	160VAC～280VAC(Working voltage range), 170VAC～270VAC(Utility starting voltage range)
Max. Utility Charge Current	20A	30A
Max. PV Open Circuit Voltage	46V	92V		138V	180V
Max. PV Input Power	390W	780W		1500W	4000W
Max. PV Charging Current	30A			60A	80A
Battery Type	Lead Acid (AGM / Gel / Sealed / Flooded) / User Custom (Lithium / Other)
Battery (Equalization/Boost/Float) Volatge	14.6V / 14.4 V / 13.8 V	29.2 V / 28.8 V / 27.6 V			58.4 V / 57.6 V / 55.2 V
Temperature Compensation Coefficient	-3mV/℃, 2V (Default)
MPPT Tracking Efficiency	upto 99.5%
PC Connectivity Option	RS485 Interface
Inbuilt Relay Interface	Can drive resistive loads 125VAC /1A, 30VDC/1A

Environment Specification:

Operating Temperature Range	-20°C ~ +50°C
Relative Humidity	≤95%, N.C
Enclosure	IP30

Physical Specs:

Parameter	1 KVA (UP1000-M3212)	2 KVA (UP2000-M3322)	3 KVA (UP3000-M3322)	3 KVA (UP3000-M6322)	5 KVA (UP5000-M8342)
Dimension	386×300×126mm	444×300×126mm		518×310×168mm	614×315×178mm
Mounting Dimension	230mm
Mounting Hole Size	Φ8mm
Weight	7.3kg	8.5kg	9.2kg	14.9kg	17.5kg

Full Protection Functions:

PV Over Current, PV Short Circuit, Night Reverse charging, Battery & PV reverse polarity, Battery over-discharge, Battery overheat, Battery over-voltage, Load Short Circuit, Load Overload, and Device overheating. Note: To comply with IEC62109 requirement, connector for the battery temp sensor is now located inside the unit.

CE, RoHS.

Box Contains:

Hybrid Charger/Inverter
DC Circular & Input Terminals
Battery Input Fuse
Environment Temperature Sensor
Installation tools. Wall Template, Anchor Bolts and Screws.

Specifications subject to change. * Lithium Battery compatibility is not guaranteed, due to varying battery chemistry and BMS configurations.
