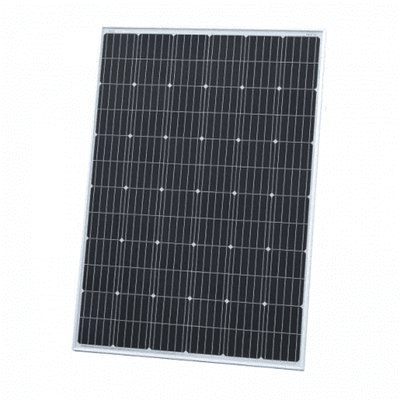

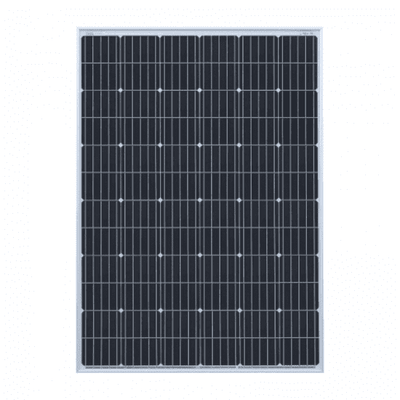

This high-efficiency, waterproof 250W 12V monocrystalline solar panel is designed for permanent outdoor use to provide free electricity for charging 12V batteries. It can power various applications such as camper vans, motorhomes, boats, sheds, farms, remote telecommunications or monitoring equipment. It can also provide a direct power supply for applications not sensitive to changes in input voltage or current, such as electric motors or pumps.

The panel comes with 5m of special solar cable, allowing it to work at high roof temperatures with minimal power losses. It is fitted with a pair of male/female MC4 connectors for easy connection to other solar panels, existing systems, or 6mm extension cables.

Featuring long-lasting, high-efficiency monocrystalline solar cells and a tough, sealed aluminum frame, this panel ensures consistent, free power for many years, regardless of weather conditions. The panel also includes innovative 5-busbar solar cells, which are more efficient than traditional 2, 3, or 4-busbar solar cells, allowing them to extract more power from the same surface area. This results in a smaller overall solar panel, making it ideal for limited-space applications. Additionally, these solar cells operate well even in high ambient temperatures, making them suitable for warmer climates.

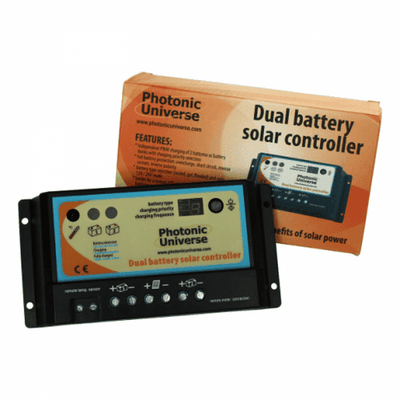

The kit comes with a 20A 12V/24V dual battery solar charge controller designed to charge and protect two batteries independently, with automatic cut-off to prevent overcharging. The controller uses PWM (Pulse Width Modulation) technology, increasing charge acceptance and prolonging battery life. It's ideal for caravans, camper vans, boats, or systems with two batteries or battery banks. The controller allows you to set the initial charging priority, automatically diverting power to the other battery once one is fully charged. The unit also has various protection functions, LED indicators, battery type selection, and a built-in temperature sensor for optimizing the charging process based on ambient temperature. An external remote temperature sensor with a 3m cable is recommended if the controller is placed far from the battery or if they are exposed to different temperatures. Please note that this essentials kit does not include mounting accessories or battery cable.

Please make sure to check the "Details and Specifications" tab for more information about this product, including the following details:

Solar Panel Specifications:

- Peak power: 250W

- Maximum power voltage: 20.2V

- Maximum power current: 12.38A

- Open circuit voltage: 23.9V

- Short circuit current: 13.12A

- Power allowance range: +/- 3%

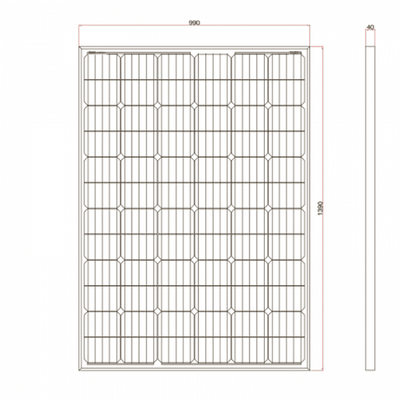

- Dimensions: 139 x 99 x 4 cm

- Weight: 15.3 kg

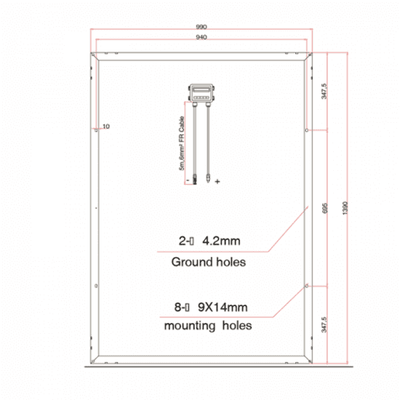

- 8 mounting holes (9 x 14 mm)

- 2 x 5m of high-quality single-core solar cable (6.0mm cross-section)

- Male and female MC4 connectors attached (can be cut off when wiring to the solar controller)

Charge Controller Specifications:

- Rated charging current: 20A

- Fully automated operation and auto 12/24V selection

- 3 pairs of terminals (input, battery 1, battery 2)

- LEDs to indicate state of charge

- Temperature sensor for temperature compensation of charging (-30mV/C/12V)

- RJ-45 connection point for a remote meter (not included)

- Various protection features (overcharge, short circuit, reverse polarity, etc.)

- Self-consumption: 4mA at night, 10mA when charging

- Working temperature: -35C to +55C

- Terminals for wire up to 4.0mm2

- Size: 15.5 x 7.6 x 4.0 cm

- Weight: 230 g

- Multiple mounting holes for ease of installation

Please be aware that due to our warehouse arrangements, the solar charge controller may be shipped from a different warehouse to the solar panel and therefore delivered in a separate package.

This product is covered by a 1-year warranty provided by Photonic Universe, including a 1-year warranty for the solar charge controller and a 1-year workmanship warranty for the solar panel. Defective items will be repaired or replaced at our discretion. In addition, solar cells are guaranteed to produce at least 90% of nominal power in 10 years after purchase and at least 80% of nominal power in 25 years after purchase. This warranty is provided by the manufacturer of solar cells.

For installation advice, please click on the "Installation" tab. The solar charge controller included in this kit is supplied with a detailed user manual which contains a wiring diagram and explains installation/operations (see "Documents" tab). Please ensure that you read the full user manual before starting the installation.

The solar panel in this kit can be fitted to a flat roof using metal brackets, plastic brackets, or a variety of other methods. To view our full range of brackets, please visit the mounting accessories category of our online shop. The solar charge controller in this kit is not waterproof and should be mounted indoors.

If you need help with installation or have any technical questions, we can provide FREE support - don't hesitate to contact us by email or phone (see "Contact Us" page for more information).

The user manual for the Photonic Universe 20A 12V/24V automatic solar charge controller is available for download.

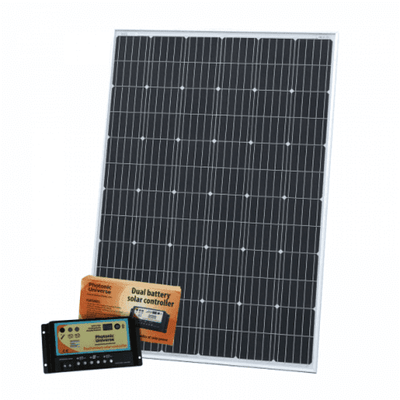

250W 12V dual battery solar kit for camper / boat with controller and cable
