This Photonic Universe 2.4kW 48V Complete Off-grid Solar Power System is the perfect ready-to-use kit for off-grid applications requiring a reliable and constant source of power for household appliances or industrial equipment in areas without access to or without stable mains electricity. This kit can provide power to small and medium household or office appliances such as a fridge, TV, radio, lights, computer, hoover, microwave or a kettle, as well as certain high power appliances such as power tools or a washing machine. This may vary significantly according to the location and season.

This complete off-grid kit has been expertly designed to maximise efficiency and output and therefore comes equipped with some of our most premium quality products; including eight powerful 300W solar panels, an advanced 48V 500Ah battery bank and a state-of-the-art Iconica hybrid power inverter - an intelligent combination of a high efficiency MPPT solar charge controller, pure sine wave inverter and smart mains battery charger in one single unit.

Kit includes:

8 x 300W monocrystalline solar panels each with 1m solar cable and MC4 connectors
Iconica Hybrid 5000W 48V pure sine wave inverter
24kWh 48V 500Ah battery bank - comprised of 24 x 2V AGM batteries
120A fuse or circuit breaker
A pair of 10m 6mm² solar extension cables with MC4 connectors
2m of 35mm² tinned copper battery cables
Solar isolator switch
Metal plate connectors and loose ring terminals

8 x Monocrystalline 300W Solar Panels:

The eight high efficiency, waterproof 300W solar panels included in the kit are amongst the largest and most powerful solar panels available on the UK and worldwide market. The panels feature thick innovative 5 busbar solar cells, which are more efficient than the 2, 3 or 4 busbar solar cells used in other solar panels, and are able to extract more power from the same surface area. Each solar panel is also fitted with 2 x 1m of 4mm² cable with MC4 connectors on the end. These can be used for easy connection to the solar extension cable included with the kit.

5000W 48V Iconica Hybrid Inverter:

This inverter intelligently combines the functions of a 5000W pure sine wave inverter, 80A 500V MPPT solar charge controller and a 60A smart battery charger in one single unit. This innovative inverter features inbuilt Bluetooth, along with the rare and unique ability to power AC appliances without connection to a battery - directly from solar power.

1. 5000W 48V Pure sine wave inverter: Converts DC current from the solar panels into 230V AC mains electricity, to run various household appliances such as a TV, laptop, lighting, fans etc. Able to generate 5000W of continuous power with a strong peak power handling capability of up to 10000VA (to start appliances with electric motors). This inverter is a pure sine wave type, which easily surpasses modified sine wave inverters in terms of efficiency and compatibility with a wider range of appliances.

2. Inbuilt 80A 500V MPPT Solar charge controller: The high efficiency MPPT controller regulates the input from the solar panels to the batteries or to load, with a full range of safety functions including protection against overcharge, overheating, reverse current etc. The controller operates at up to 98% efficiency to extract the maximum possible power from the solar array.

3. Enhanced 60A Smart battery charger: Designed to enable safe and efficient and fast (up to 60A) unattended charging of the battery bank from a mains power source or generator, with full overcharge protection and multiple charging stages.

4. Inbuilt Bluetooth connectivity: The integrated Bluetooth function allows the inverter to be monitored remotely via the Watchpower mobile app - a free mobile app available for Android devices. After downloading the app, simply pair your mobile device with the inverter to gain access to important information such as solar/ battery/ AC voltage, charging current, battery capacity etc.

Additional features: This inverter is able to power AC loads (and itself) directly from the solar input, without the need for a battery bank to be connected to the inverter. However, if a battery bank is available, the inverter can power loads directly from the solar panels whilst the charging batteries at the same time. This model also features an Uninterrupted Power Supply (UPS), and can accept input from the solar panels, mains power/ a generator and the battery bank - either from a single or combination of input sources.

The inverter is supplied with a PC connection cable and PC software CD for convenient viewing of important system information, and can also be connected to a Wi-Fi connection kit or 3G connection kit (purchased separately) to unlock access to SMS / email status updates for the inverter, remote system monitoring from any location and much more.

24kWh 48V 500Ah AGM Battery Bank:

The advanced 48V 500Ah battery bank included in this kit is comprised of 24 x 2V high quality AGM batteries, complete with metal plate connectors for instant connection. This battery bank features 2V batteries, offering important advantages over battery banks made up of 12V batteries including a longer service life and deeper discharge capability.

Additional items:

This kit also includes 2m positive and negative 35mm² tinned copper battery cables with loose ring terminals for connecting the inverter to the battery bank, a 120A fuse or circuit breaker for use between the hybrid inverter and the battery bank, 10m solar extension cable with MC4 connectors to connect to the existing 1m of solar cable fitted to the solar panels, a solar isolator switch and metal plate connectors for connection of the battery bank.

Click on the Details and Specifications tab for more information about this kit.

Solar panel specifications (per solar panel):

Peak power: 300W
Maximum power voltage: 32.70V
Maximum power current: 9.17A
Open circuit voltage: 39.80V
Short circuit current: 9.78A
Power tolerance: 0/+3%
Dimensions: 164 x 99 x 3.5 cm
Weight: 19 kg
Mounting holes for installation
2 x 1m of high quality single core solar cable 4.0mm² cross section
Male and female MC4 connectors

Hybrid inverter specifications:

Nominal battery voltage: 48V
Continuous power output: 5000W/5000VA (220-240V AC)
Surge power: 10000VA
Output frequency: 50Hz
Output waveform: Pure sine wave
Maximum solar input power: 4000W
Maximum open circuit solar input voltage: 500V (open circuit)
MPPT solar operating voltage: 120V - 450V
Maximum solar charging current: 80A
Maximum mains AC charging current: 60A
Maximum combined charging current: 80A
Peak efficiency: 93%
Solar / AC charger max efficiency: 98%
Operating temperature: -10°C to 50°C
Supplied with USB drive, PC connection cable and PC software CD
Size: 44 x 30 x 11.5 cm
Weight: 10 kg

Battery bank specifications (per 2V battery):

Nominal voltage: 2V
Nominal capacity: 500Ah (10h rate) / 508Ah (20h rate)
Maximum charging current: 100A
Cycle lifetime at 30% D.O.D.: 1200
Pressure control: safety valve installed
Terminal type: M10 bolts
Operating temperature: from -10C to +40C
Size: 242 x 174 x 365 mm
Weight: 27 kg

(entire 24V battery bank):

Nominal voltage: 48V
Nominal capacity: 24kWh
Maximum charging current: 100A
Charging voltage: cycle use 56.4V, standby use 54.8V
Temperature compensation: cycle use -120mV/°C, standby use -72mV/°C
Size: 1290 x 1140 x 670 mm (when positioned in racking)
Weight: 720 kg (including racking)

Please note: due to our warehouse arrangements, the kit accessories may be shipped from a different warehouse to the solar panels, hybrid inverter and battery bank, and therefore delivered in a separate package.

The panels and batteries are covered by a 1 year warranty provided by Photonic Universe. In the unlikely event that a defect is found and confirmed during this period, we guarantee that we will repair or replace defective items (at our discretion). The hybrid inverter is covered by a 1 year manufacturer warranty. For more information please refer to our Terms and Conditions.

In addition, solar cells are guaranteed to produce at least 90% of nominal power in 10 years after purchase and at least 80% of nominal power in 25 years after purchase. This warranty is provided by the manufacturer of solar cells.

For installation advice, please click on the Installation tab.

A wiring diagram for this off-grid solar system is available to download in the 'Documents' tab. Please refer to this diagram during wiring and installation.

If you are unsure as to whether 3000W output power is sufficient for your appliances, please refer to our table of typical power consumption of domestic appliances.

If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).

The following documents are available to download:

User manual for IC3-BM5000-48 hybrid power inverter

User manual for 'WatchPower' PC software for Iconica IC3-BM5000-48

System wiring diagram for Photonic Universe 2.4kW 48V Complete Off-grid Solar Power System KIT5K-2K-24KWH

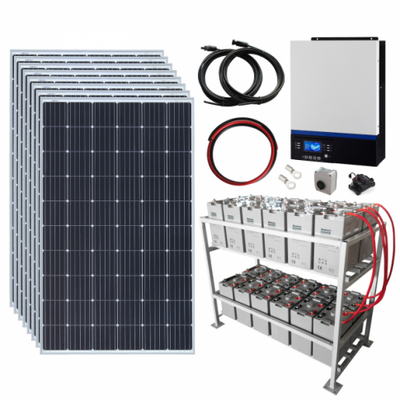

2.4kW 48V Complete Off-grid solar power system with 8 x 300W solar panels, 5kW hybrid inverter and a 24kWh battery bank
