A power inverter is a device that converts the output of a battery (DC, or direct current) into 230V AC mains electricity (alternating current). This is the type of electricity that utility companies supply to power standard domestic appliances like TVs, fridges, radios, lights, or to charge a laptop or mobile phone. By connecting a power inverter to a battery, you can power household appliances in areas without access to mains electricity, such as in a motorhome, caravan, boat, farm, or any other remote location. Inverters are also perfect for off-grid and backup systems in case of power cuts. This is a pure sine wave type of inverter, which means that the 230V AC output harmonically follows a smooth sine wave and is almost identical to normal mains electricity. A pure sine wave output is superior to square sine wave or modified sine wave output for running appliances because it is suitable for a broader range of appliances and it is more efficient. This 3000W 24V pure sine wave power inverter can generate 3000W of continuous power and up to 6000W of power at peak times. The peak time reserve capacity is useful in case more energy is required to start an appliance than for its continuous running.

This product is equipped with important protection and safety features such as over-discharge, overload, overheating, and short-circuit automatic shutdown. The inverter also has a USB port for powering USB-compatible devices (e.g. mobile phones, tablets, laptops, MP3 players, etc.) and comes with a wireless On/Off remote control with a maximum 50m radius.

Specifications:

- Input: 24V (20-30V) DC

- Output: 230-240V AC

- Output frequency: 50 Hz

- Output waveform: pure sine wave

- THD: < 4%

- Continuous power: 3000W

- Surge power: 6000W

- Peak efficiency: 90%

- Low battery shut down: 20.0V +/- 1.0V DC

- Low battery alarm: 21.0V +/- 1.0V DC

- High voltage shut down: 31.0V +/- 1.0V DC

- Thermal shut down: 60 +/-5°C

- Rated USB output: 2A

- Wireless remote control radius: Approx. 50m

- Size: 460 x 220 x 95 mm

- Weight: 6 kg

This product is covered by a 1-year manufacturer warranty and comes with a user manual that explains wiring, installation, and operations.

Installation:

Simply connect the inverter to your 24V battery or battery bank, plug your appliances into the inverter, turn the power switch on, and they will start running. An adaptor may be used for more sockets, provided that the total power consumption of all appliances connected to this inverter is within 3000W.

For users of our solar charging systems:

This inverter can be connected to your 24V battery/battery bank alongside any of our solar systems or charging kits. If you already have one of our 24V solar charging kits with a charge controller connected to your 24V battery, this inverter can be added at any time (connect the inverter to your battery in parallel with the solar controller and 12V appliances). If the solar charge controller has a pair of "load" terminals, please do not connect the inverter to this pair of terminals as the power may be too high for the solar controller. We recommend connecting the inverter to your 24V battery directly. If you do not have one of our 24V solar charging kits but plan to build an off-grid solar system with 240V mains output, we recommend using 24V batteries/24V solar charging kits alongside this inverter with a 24V input voltage, rather than having 12V components and an inverter with a 12V input voltage. 24V system components provide the following benefits:

- The cables for 24V do not have to be as thick as those required for 12V

- The input into the power inverter will have a twice smaller current (Amps) than that of a 12V system, making the whole system more stable and reliable.

If you need help with installation or have any technical questions, we can provide FREE support - don't hesitate to get in touch with us by email or phone. The user manual for the 3000W 24V pure sine wave inverter with wireless remote control (IPR-3000-24) is available for download in the Documents tab.

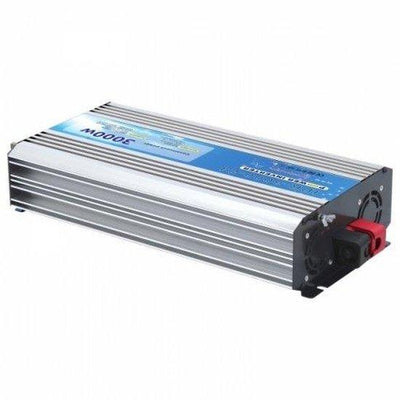

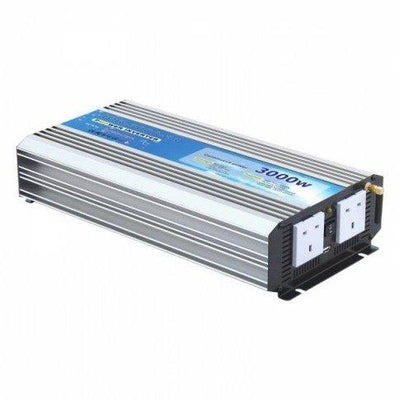

3000W 24V pure sine wave power inverter with On/Off remote control
